Hubbell Hubbell HBL2413SW


Description

Industry Description

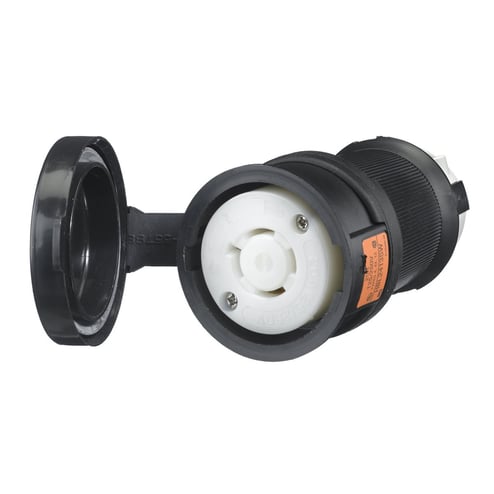

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Female Connector Body, 20A 125/250V, 3-Pole 4-WireGrounding, L14-20R, Screw Terminal , Black and White

Modified Industry Description

20A 125/250V CONN BLACK WHITE WATERTIGHT SAFETY SHROUD

AD Description

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2413SW Grounding Heavy Duty Locking Connector, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Black/White

Specifications

Amperage Rating
20
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Black/White
Conductor Range
#12AWG - #10AWG
Connection
Pressure Screw Terminal
Country of Origin
US
Enclosure
NEMA 4/4X/12/IP66
Environmental_Conditions
Water Tight
Grade
Commercial/Industrial
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
NEMA L14-20R
Number Of Conductors
4-Wire Grounding
Number_Of_Poles
3
Number_Of_Wires
4
Size
Standard
Special Features

  • #10-32 brass (green finish) multi-drive ground screw
  • #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw
  • 0.08 in (2) steel nickel plated terminal clamp
  • 2 hp line to line, 1 hp line to neutral horsepower
  • 20 A, 12 AWG terminal accommodation
  • Brass contact spring, brass spring binding plate, 0.031 in brass ground contact
  • Certified for current interrupting at full rated current
  • Clear polycarbonate terminal retainer, impact modified PBT housing, white Valox® cord clamp
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Molded-in or stamped on ratings, withstands 2000 VAC minimum dielectric voltage
  • Natural white nylon body contact carrier material
  • Polypropylene with neoprene gasket closure cap and strap material
  • Round portable service cords of diameters commensurate with the device rating as defined in UL standard 62, CSA C22.2 No. 49 cord accommodation
  • Stainless steel, multi-drive cord clamp screw, stainless steel, multi-drive body holding screw
  • Terminals identified in accordance with UL 498 (X, Y, Z, white, green)
Standard
NEMA WD1 and WD5, UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Grounding Heavy Duty
Voltage Rating
125/250
