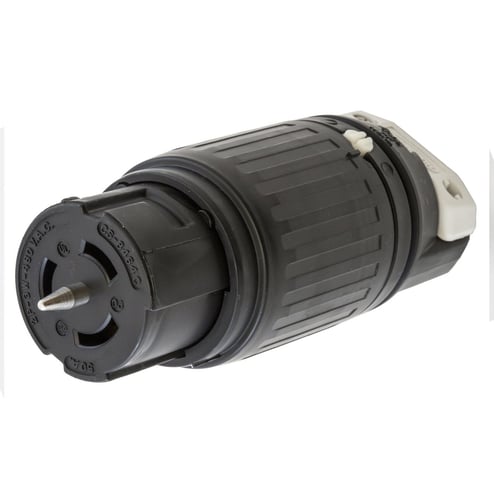

Hubbell Hubbell CS8464C


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 50A 480V AC, 2-Pole 3-Wire Grounding, Non-NEMA,Screw Terminal, Black and White

Modified Industry Description

50 A 480 V 2 Pole 3 Wire Grounding Non-NEMA Black and White TwistLock Female Connector Body

AD Description

Wiring Device-Kellems Twist-Lock® Insulgrip® CS8464C Grounding Heavy Duty Locking Connector, 480 VAC, 50 A, 2 Poles, 3 Wires, Black/White

Specifications

Amperage Rating
50
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Black/White
Conductor Range
#6AWG
Connection
Pressure Screw Terminal
Country of Origin
US
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
Non-NEMA
Number Of Conductors
3-Wire Grounding
Number_Of_Poles
2
Size
Standard
Special Features

  • 302/304 stainless steel cord clamp screw
  • 6 AWG terminal accommodation
  • Black nylon body contact carrier
  • Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
  • Brass contact spring, spring binding plate, ground contact
  • Heavy duty 2-piece external cord clamp provides maximum strain relief
  • Non-NEMA rated
  • Oversized contacts minimize operating temperature
  • Steel pressure screw zinc plate terminal screw and ground screw
  • Super tough nylon
  • Thermoplastic polyester interior provides heat resistance and impact strength
  • White thermoplastic cord clamp
  • Withstands 2000 VAC dielectric voltage
Standard
UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type
Insulgrip
Voltage Rating
480
