Hubbell Hubbell CS6360C
Hubbell CS6360C
Kirby Risk #: 488204
UPC: 78358582793, 783585827933, 00783585827933
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

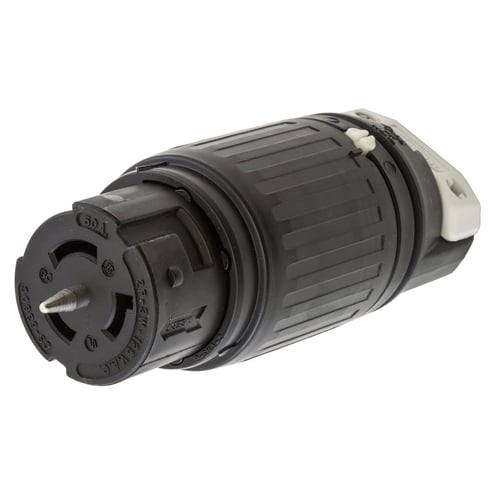

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 50A 125V, 2-Pole 3-Wire Grounding, Non-NEMA,Screw Terminal, Black and Wh te
Modified Industry Description
2P3W 50A 125V LOCKING FEMALE CONN
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® CS6360C 1-Phase Isolated Grounding Female Connector, 125 VAC, 50 A, 2 Poles
Specifications
| Amperage Rating |
50
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black/White
|
| Conductor Range |
#6AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
3-Wire Grounding
|
| Number_Of_Poles |
2
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
|
| Type |
Insulgrip
|
| Voltage Rating |
125
|
