Hubbell Hubbell HBL9368


Description

Industry Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Male Plug, HeavyDuty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 50A250V, 6-50P, Black, Single Pack

Modified Industry Description

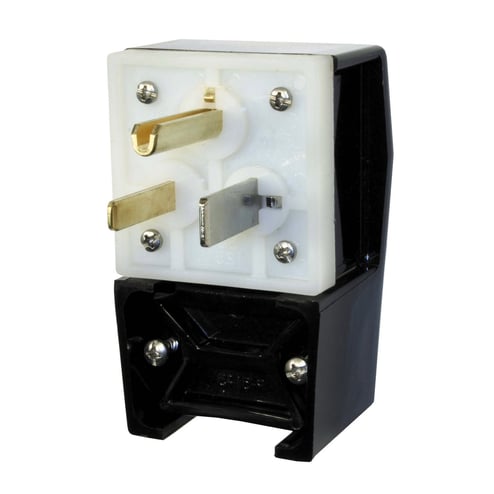

50A 250V - BLACK MALE PLUG, 2 POLE, 3 WIRE, ANGLED

AD Description

Wiring Device-Kellems Insulgrip® HBL9368 Grounding Standard Straight Blade Plug, 250 VAC, 50 A, 2 Poles, 3 Wires, Black/White

Specifications

Amperage Rating
50
Application
Industrial/Commercial
Brand Name
Hubbell
Color
Black/White
Connection
Terminal Screws
Conductor Size
#12 AWG to #4 AWG
Cord_Type
All Portable
Country of Origin
US
Enclosure
IP20
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Commercial/Industrial
Material
Composite
Mounting
Cord Mounted
NEMA_Configuration
6-50P
NEMA_Rating
NEMA 6-50P
Number_Of_Poles
2
Number_Of_Wires
3
Phase
Single
Poles
2
Size
Standard Sized
Special_Features

  • 0.06 in brass contact blades, 0.078 in ground contact blade
  • 14 to 12 AWG solid or stranded copper conductor terminal accommodation
  • Certified for current interrupting at full rated current
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Reinforced thermoplastic polyester blade holder, retainer and cord clamp
  • Steel zinc plated terminal screw, plated steel ground screw, brass box terminal
  • Terminals identified in accordance with UL 498 (brass, white, green)
  • UL 94 V-0 receptacle, UL 94-HB housing plug, UL 94 V-0 blade holder and retainer flammability
  • Withstands 2000 VAC dielectric voltage

Standard
NEMA WD1 and WD5, UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Grounding Standard
Voltage Rating
250
Wattage
12500
