Hubbell Hubbell HBL8219C
Hubbell HBL8219C
Kirby Risk #: 487286
UPC: 78358517950, 783585179506, 00783585179506, 30183585179505
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Female ConnectorBody, Insulgrip, Hospital Grade, Straight, 2-Pole 3-Wire Grounding, 15A125V, 5-15R, Black and White, Single Pack, Canadian Version
Modified Industry Description
15A 125V - BLACK AND WHITE FEMALE CONNECTOR BODY, 2 POLE, 3 WIRE, HOSPTIAL GRADE
AD Description

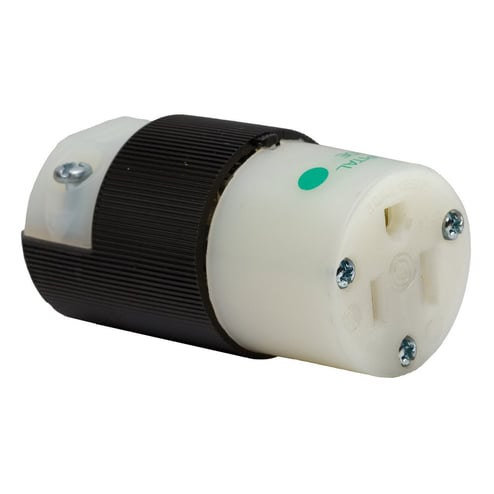

Wiring Device-Kellems Insulgrip® HBL8219C Female Standard Sized Straight Blade Connector, 125 VAC, 15 A, 2 Poles
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Hospital Grade
|
| Brand Name |
Hubbell
|
| Color |
Black/White
|
| Conductor Range |
#14AWG - #12AWG
|
| Connection |
Screw Terminals
|
| Country of Origin |
US
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Hospital
|
| Insulation |
Insulated Body
|
| Material |
Nylon
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
5-15R
|
| NEMA_Rating |
5-15R
|
| Number Of Conductors |
3
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Poles |
2
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Female Standard Sized
|
| Voltage Rating |
125
|
