Hubbell Hubbell HBL5921


Description

Industry Description

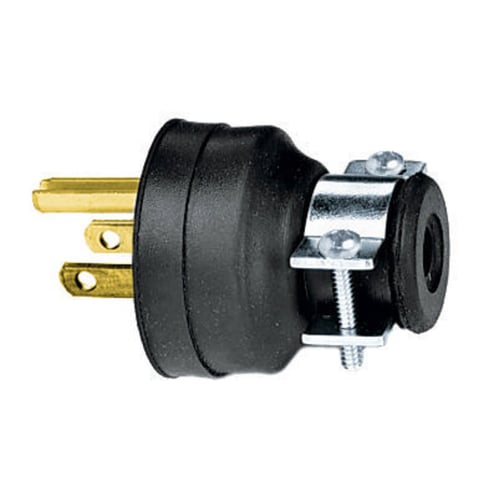

Hubbell Wiring Device Kellems, Straight Blade Devices, Male Plug, FingerGrip, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding,15A 125V, 5-15P, Black, Single Pack

Modified Industry Description

15A 125V MALE BLACK

AD Description

Wiring Device-Kellems HBL5921 Grounding Male Standard Straight Blade Plug, 250 VAC, 15 A, 2 Poles, 3 Wires, Black

Specifications

Amperage Rating
15
Application
Industrial/Commercial
Brand Name
Hubbell
Color
Black
Connection
Terminal Screws
Conductor Size
#16 AWG to #10 AWG
Cord_Type
All Portable
Country of Origin
US
Enclosure
IP20
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Commercial/Industrial
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
NEMA 5-15P
Number_Of_Poles
2
Number_Of_Wires
3
Phase
1
Size
Standard Sized
Special_Features

  • #8-32 brass multiple drive (green) ground screw
  • #8-32 brass/nickel plated for neutral terminal screw
  • 0.04 in copper alloy ground contact blade
  • 0.06 in brass contact blades
  • 18 to 10 AWG solid or stranded copper conductor terminal accommodation
  • Certified for current interrupting at full rated current
  • Dead front construction
  • External cord clamp
  • Insulprene body
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Nylon natural blade holder material
  • Nylon natural cord clamp material
  • Polycarbonate clear retainer material
  • Ratings are a permanent part of the device product identification
  • Terminals identified in accordance with UL 498 (brass, white, green)
  • Withstands 2000 VAC dielectric voltage

Standard
NEMA WD1 and WD5, UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Grounding Male Standard
Voltage Rating
250
Wattage
1,875
