Hubbell Hubbell HBL5669VY
Hubbell HBL5669VY
Kirby Risk #: 487012
UPC: 78358501321, 783585013213, 00783585013213
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

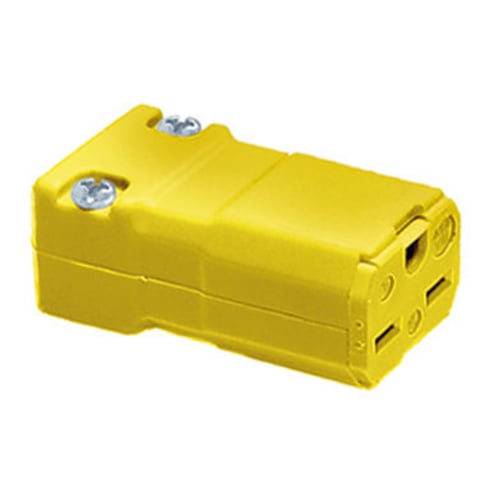

Hubbell Wiring Device Kellems, Straight Blade Devices, Female ConnectorBody, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 250V, 6-15R, Yellow, Single Pack
Modified Industry Description
15A 250V CONN YELLOW
AD Description
Wiring Device-Kellems Valise® HBL5669VY Female Grounding Insulated Straight Blade Connector, 250 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Industrial/Commercial
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Conductor Range |
#14AWG - #12AWG
|
| Connection |
Screw Terminals
|
| Country of Origin |
US
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Commercial/Industrial
|
| Insulation |
Insulated Body
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
6-15R
|
| NEMA_Rating |
NEMA 6-15R
|
| Number Of Conductors |
3
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Poles |
2
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Female Grounding Insulated
|
| Voltage Rating |
250
|
