Hubbell Hubbell SE2730A
Hubbell SE2730A
Kirby Risk #: 486810
UPC: 78358500635, 783585006352, 00783585006352
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

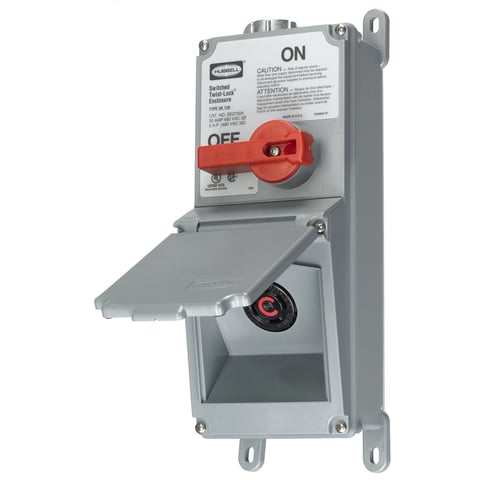

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Lever Actuated, Switched Enclosure With Receptacle,Three Pole, 30A TwistLock, 3 Phase 480 V AC, Terminal Screws, Gray
Modified Industry Description
30A 480V - GRAY PIN AND SLEEVE SWITCHED ENCLOSURE W/ RECEPTACLE, 3 POLE, 4 WIRE
AD Description
Wiring Device-Kellems Twist-Lock® SE2730A 3-Pole Extra Heavy Duty Lever Actuated Standard Sized Switched Enclosure
Specifications
| Action |
Snap
|
|---|---|
| Actuator |
Lever
|
| Amperage Rating |
30
|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Contact_Configuration |
Two Position
|
| Country of Origin |
PR
|
| Enclosure |
Non-Metallic
|
| Environmental_Conditions |
NEMA 4X
|
| Frequency_Rating |
60
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Mounting Feet
|
| Number_Of_Poles |
3
|
| Operating_Cycles |
6k
|
| Operating_Temperature |
Max Continuous- 67 Degrees C, Minimum- -40 Without Impact
|
| Phase |
3
|
| Poles |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Switched Enclosure With Receptacle
|
| Voltage Rating |
480
|
| Width_2 |
5.4000
|
| Width_3 |
5.5000
|
