Bussmann Bussmann SC-25

Name: Bussmann SC-25
Brand: Bussmann
SKU: 486446
Price: 54.66 USD
Availability: InStock

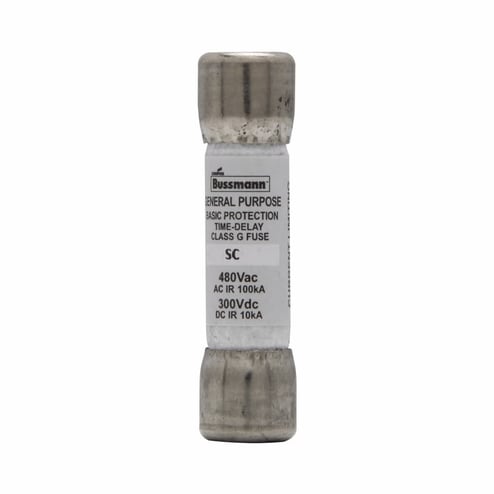

Bussmann SC-25

Kirby Risk #: 486446

UPC: 05171225025, 051712250252, 00051712250252

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Bussmann

Description

Industry Description

25A 480V Class G Time Delay Fuse

Modified Industry Description

25A 600V CLASS G TIME DELAY FUSE

AD Description

Bussmann SC-25 Current Limiting Time Delay General Purpose Fuse, 25 A, 480 VAC, 300 VDC, 10/100 kA, Class G, Cartridge Body

Amperage Rating	25
Application	Fusible Branch Panelboards, HVAC Branch Circuit Protection
Brand Name	Bussmann
Characteristics	Time Delay
Connection	Ferrule End X Ferrule End
Country of Origin	MUL
Interrupt_Rating	100000 Amp (RMS Symmetrical), 10000 Amp (DC)
Model	SC
Package_Quantity	1
Size	0.41 In Diameter X 1.62 In Length
Special Features	100 kA at 480 VAC, 10 kA at 300 VDC interrupt rating Compact branch circuit units with high interrupt rating and current limitation For use in various non-demanding, general purpose applications Fuses 7 A and above have a degree of overload time delay that permits them to pass temporary overloads Most economical overcurrent protection solution compared to circuit breakers Size rejection by length helps prevent over fusing
Standard	UL 248-5, CSA, CE
Sub_Brand	Cooper Bussmann
Type_Of_Indicators	Non-Indicating
Type	Current Limiting, Time Delay
Voltage Rating	480
