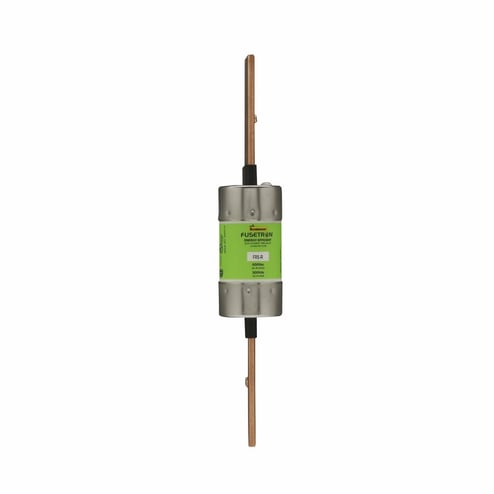

Bussmann Bussmann FRS-R-200


Description

Industry Description

200A 600V Class RK5 Fusetron Dual Element, Time Delay Fuse

Modified Industry Description

200A 600V - RK5 FUSETRON DUAL ELEMENT , TIME DELAY FUSE

AD Description

Bussmann Fusetron™ FRS-R-200 FRS-R Current Limiting Renewable Time Delay Fuse, 200 A, 600 VAC/300 VDC, 200/20 kA Interrupt, RK5 Class, Cartridge Body

Specifications

Amperage Rating
200
Application
Combination Starters, Motor Control Centers, Machinery Disconnects, Power Panelboards
Brand Name
Bussmann
Characteristics
Time Delay
Connection
Blade End X Blade End
Country of Origin
MX
Element
Dual
Interrupt_Rating
200/20
Material
Fiberglass
Model
FRS-R
Package_Quantity
1
Response_Time
10
Size
1.61 In Diameter X 9.63 In Length
Special Features

  • Considerable cost saving occurs by permitting the use of smaller size switches, panels and fuses themselves
  • Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
  • Gives motor running back up protection to motors without extra costs
  • Helps protect motors against burnout from overloads and single phasing when sized properly
  • Provides a good deg of short circuit protection (greater current limitation) to help protect downstream components from high fault currents
  • Provides motor overload, ground fault and short circuit protection
  • Simplifies and improves blackout prevention (selective coordination ratios)
  • The time delay feature makes it possible to use fuse amperage ratings which are much smaller than those of non-time delay fuses
  • When used in circuits subject to surge currents such as those caused by motors, transformers and other inductive components, these fuses can be sized close to full-load amps to give maximum overcurrent protection
Standard
UL 248-12, CSA, CE
Sub_Brand
Cooper Bussmann
Type_Of_Indicators
Non-Indicating
Type
Current Limiting Renewable
Voltage Rating
600 VAC/300 VDC
