Hubbell Hubbell HBL2771
Hubbell HBL2771
Kirby Risk #: 485368
UPC: 78358503951, 783585039510, 00783585039510
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

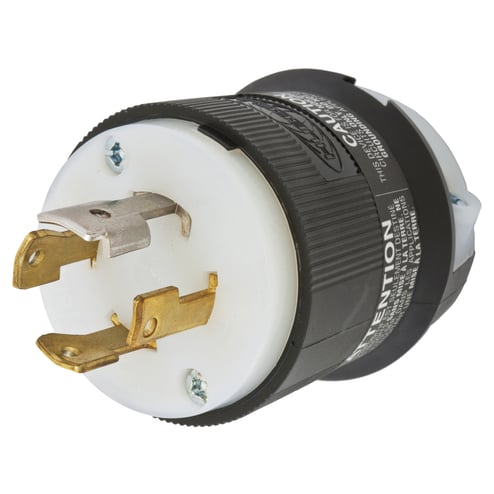

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Male Plug, 30A 3-Phase 347/600V AC, 4-Pole 4-Wire Non-Grounding, L20-30P, Screw Terminal, Black and White
Modified Industry Description
30A 347/600V - LOCKING MALE PLUG, 4 POLE, 4 WIRE
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2771 Extra Heavy Duty Non-Grounding Locking Plug, 347/600 VAC, 30 A, 4 Poles, 4 Wires, Black/White
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black/White
|
| Connection |
Pressure Screw Terminal
|
| Conductor Size |
#12AWG to #8AWG
|
| Cord_Type |
All Listed Portables
|
| Country of Origin |
US
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
L20-30P
|
| NEMA_Rating |
NEMA L20-30P
|
| Number_Of_Poles |
4
|
| Number_Of_Wires |
4
|
| Phase |
Three
|
| Poles |
4
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Extra Heavy Duty Non-Grounding
|
| Voltage Rating |
347/600
|
| Wattage |
18000
|
