Bussmann Bussmann 16303-3
Bussmann 16303-3
Kirby Risk #: 485159
UPC: 05171214871, 051712148719, 00051712148719
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Bussmann
Description
Industry Description

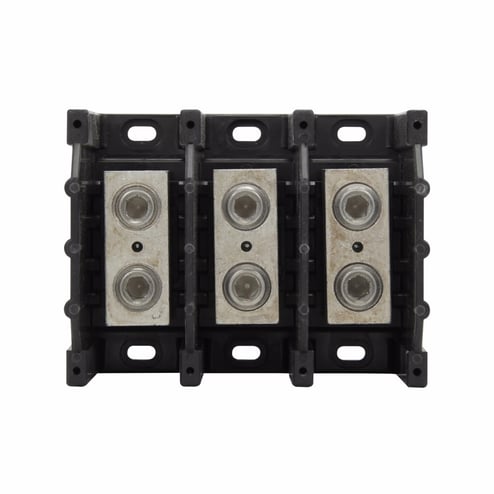

310A 600V Splicer 3 Pole Power Terminal Block
Modified Industry Description
310A 600V - 3 POLE POWER SPLICER TERMINAL BLOCK
AD Description
Edison 16303-3 Barrier/Splicer Power Terminal Block, 600 VAC/VDC, 310 A, 3 Poles, 6 AWG to 350 kcmil Wire, Thermoplastic
Vendor Description
Edison series splicer blocks allow for increasing or decreasing wire size within a circuit to accommodate different connections from the power source to the branch load. Splicer blocks are available for wire sizes up to 500 kcmil and amp ratings up to 760 A. They are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels. These blocks are factory configured from 1- to 4-poles (catalog number dependent) with optional covers available to enhance safety (order covers separately).
Specifications
| Amperage Rating |
310
|
|---|---|
| Application |
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
|
| Brand Name |
Bussmann
|
| Color |
Black
|
| Connection |
Splicer
|
| Conductor Size |
6 AWG To 350 KCMIL (Copper/Aluminum) Line/Load
|
| Country of Origin |
MX
|
| Finish |
Tin Plated
|
| Material |
Thermoplastic
|
| Number_Of_Poles |
3
|
| Operating_Voltage |
3
|
| Size |
5.21 In Length X 4.00 In Width X 3.32 In Height
|
| Special Features |
|
| Standard |
UL, CSA
|
| Sub_Brand |
Cooper Bussmann
|
| Type |
Barrier/Splicer
|
| Voltage Rating |
600
|
