Hubbell Hubbell HBL2713
Hubbell HBL2713
Kirby Risk #: 485075
UPC: 78358503917, 783585039176, 00783585039176
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

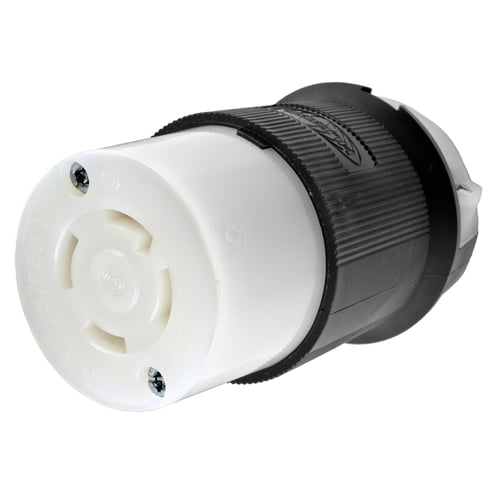

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R,Screw Terminal, Black and White
Modified Industry Description
30A 120/250V - LOCKING FEMALE CONNECTOR, 3 POLE, 4 WIRE
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2713 Grounding Heavy Duty Locking Connector, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black/White
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black/White
|
| Conductor Range |
8-2
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
L14-30R
|
| NEMA_Rating |
NEMA L14-30R
|
| Number Of Conductors |
4
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Poles |
3
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Twist-Lock
|
| Temperature_Rating |
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
|
| Type |
Grounding Heavy Duty
|
| Voltage Rating |
125/250
|
