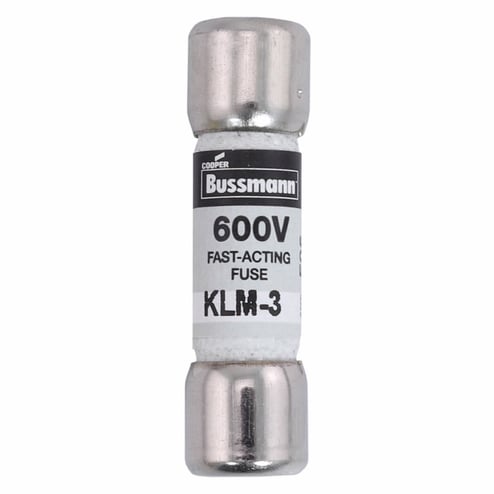

Bussmann Bussmann KLM-3

Name: Bussmann KLM-3
Brand: Bussmann
SKU: 484850
Price: 99.48 USD
Availability: InStock

Bussmann KLM-3

Kirby Risk #: 484850

UPC: 05171269510, 051712695107, 00051712695107

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Bussmann

Description

Industry Description

LIMITRON FAST ACTING FUSE

Modified Industry Description

FUSE 3A 500VAC/VDCmp 13/32 x 1 1/2

AD Description

Edison KLM-3 Fast Acting Midget Fuse, 3 A, 600 VAC/VDC, 100/50 kA, Class CC/Supplemental, Cartridge Body

Amperage Rating	3
Application	DC Control Circuits, Solar Power Energy Sources
Class	K7
Connection	Ferrule End X Ferrule End
Country of Origin	MX
Dimensions	0.0010 X 0.0010 X 0.0010
Interrupt_Rating	100000 Amp (AC), 50000 Amp (DC)
Length1	1.9690
Material	Melamine Tube
Size	13/32 In Diameter X 1-1/2 In Length
Special Features	A full range DC supplemental fuse Nickel plated brass endcaps Upgrading to Low-Peak® class CC product will reduce SKU investment and minimize potential for misapplying fuse
Standard	UL 248-14, CSA C22.2, CE
Sub_Brand	Cooper Bussmann
Type	Fast Acting
Voltage Rating	600
