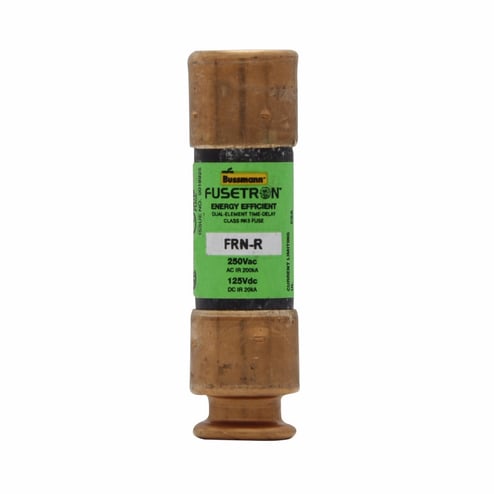

Bussmann Bussmann FRN-R-3-2/10


Description

Industry Description

3-2/10A 250V Class RK5 Fusetron Dual Element, Time Delay Fuse

Modified Industry Description

3 2/10A 250V - RK5 FUSETRON DUAL ELEMENT , TIME DELAY FUSE

AD Description

Bussmann Fusetron™ FRN-R-3-2/10 FRN-R Current Limiting Time Delay Fuse, 3-2/10 A, 250 VAC/125 VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body

Vendor Description

EATON Bussmann series advanced protection, energy efficient FRN-R class RK5 dual element, current limiting, time delay fuses with optional open fuse indication on select ratings. Time delay 10 sec (minimum) at 500% of rated current (8 sec for 1/10-30 A sizes).

Specifications

Amperage Rating
3-2/10
Application
Combination Starters, Motor Control Centers, Machinery Disconnects, Power Panelboards
Brand Name
Bussmann
Characteristics
Time Delay
Connection
Ferrule End X Ferrule End
Country of Origin
MX
Element
Dual
Interrupt_Rating
200/20
Material
Fiberglass
Model
FRN-R
Package_Quantity
1
Response_Time
10
Size
0.56 In Diameter X 2.00 In Length
Special Features

  • Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
  • Helps protect motors against burnout from overloads
  • Helps protect motors against burnout from single phasing on 3-phase systems
  • Provides motor overload, ground fault and short circuit protection
  • Simplifies and improves blackout prevention (selective coordination ratios)
  • The overload element provides protection against low level over current of overloads and will hold an overload which is five times greater than the amperage rating of the fuse for a minimum of 10 sec
Standard
UL 248-12, CSA, CE
Sub_Brand
Cooper Bussmann
Type_Of_Indicators
Non-Indicating
Type
Current Limiting
Voltage Rating
250 VAC/125 VDC
