Hubbell Hubbell HBL2523

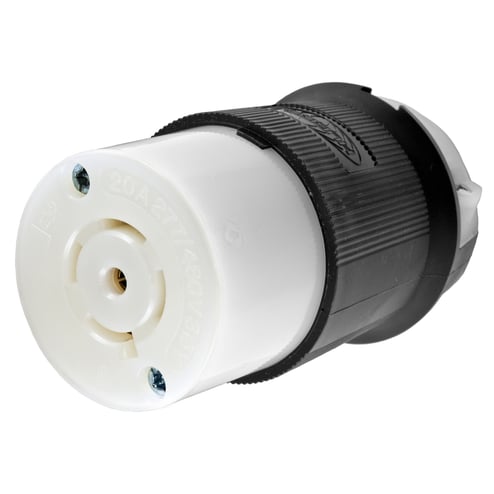

Hubbell HBL2523
Kirby Risk #: 484776
UPC: 78358503860, 783585038605, 00783585038605
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 20A 3-Phase Wye 277/480V AC, 4-Pole 5-WireGrounding, L22-20R, Screw Terminal , Black and White
Modified Industry Description
5 WIRE, 20A, 277/480V - 4 POLE - LOCKING FEMALE CONNECTOR
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2523 Heavy Duty Non-Grounding Locking Connector, 277/480 VAC, 20 A, 4 Poles, 5 Wires, Black/White
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black/White
|
| Conductor Range |
#12AWG - #10AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
NEMA L22-20R
|
| Number Of Conductors |
5-Wire Grounding
|
| Number_Of_Poles |
4
|
| Number_Of_Wires |
5
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Heavy Duty Non-Grounding
|
| Voltage Rating |
277/480
|
