Bussmann Bussmann JKS-45

Name: Bussmann JKS-45
Brand: Bussmann
SKU: 484644
Price: 161.87 USD
Availability: InStock

Bussmann JKS-45

Kirby Risk #: 484644

UPC: 05171263045, 051712630450, 00051712630450

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Bussmann

Description

Industry Description

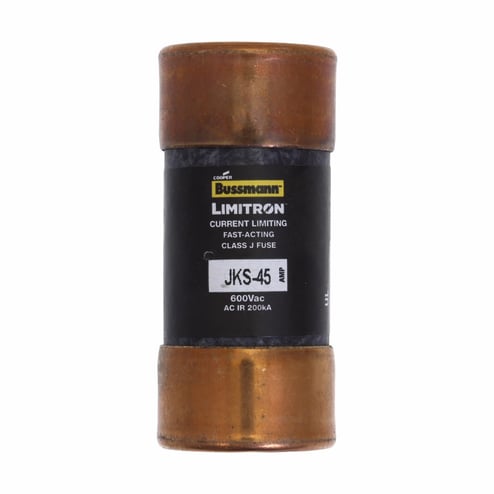

45A 600V Class J Limitron Fast Acting Fuse

Modified Industry Description

FUSE 45A 600V CLASSJ FAST

AD Description

Bussmann Limitron™ JKS-45 Current Limiting Fast Acting Fuse, 45 A, 600 VAC, 200 kA, Class J, Cylindrical Body

Amperage Rating	45
Application	Power Panelboards, Machinery Disconnects
Brand Name	Bussmann
Characteristics	Fast Acting
Connection	Ferrule End X Ferrule End
Country of Origin	MX
Element	Single
Interrupt_Rating	200
Material	Melamine
Model	JKS
Package_Quantity	1
Size	1.06 In Diameter X 2.38 In Length
Special Features	200 kA interrupt rating provides high ratings for control circuit locations Advanced protection Current limitation for non-inductive circuits provides class J current limiting response to maximum ground fault and short circuit conditions Economical solutions for high fault circuits Fuses can be selectively coordinated with ease High interrupt rating helps meet the requirements of future system expansion and the increases in available utility short circuit current Protects low interrupting capacity circuit breakers, limits the short circuit current to meet the interrupting capacity requirements of existing equipment Provides component short circuit protection in compliance with NEC 110-10, where protection devices shall clear a fault without extensive damage to the circuit components Well suited for lighting and heating circuits and other non-inductive loads
Standard	UL 248-8, CSA C22.2, CE
Sub_Brand	Cooper Bussmann
Type_Of_Indicators	Non-Indicating
Type	Current Limiting
Voltage Rating	600
