Hubbell Hubbell HBL2423
Hubbell HBL2423
Kirby Risk #: 484572
UPC: 78358503821, 783585038216, 00783585038216
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 20A 3-PhaseDelta 250V AC, 3-Pole 4-WireGrounding, L15-20R, Screw Terminal, Black and White
Modified Industry Description
20A 250V - LOCKING FEMALE CONNECTOR, 3 POLE, 4 WIRE
AD Description

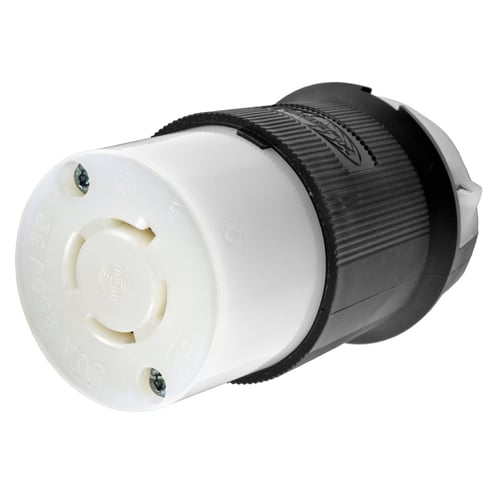

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2423 Grounding Heavy Duty Shrouded Watertight Locking Connector, 250 VAC, 20 A, 3 Poles, 4 Wires, Black/White
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black/White
|
| Conductor Range |
#12AWG - #10AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
L15-20R
|
| NEMA_Rating |
NEMA L15-20R
|
| Number Of Conductors |
4-Wire Grounding
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Poles |
3
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding Heavy Duty Shrouded Watertight
|
| Voltage Rating |
250
|
