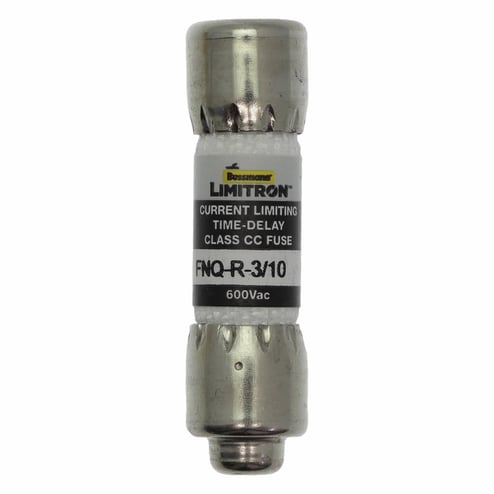

Bussmann Bussmann FNQ-R-3/10

Name: Bussmann FNQ-R-3/10
Brand: Bussmann
SKU: 484325
Price: 71.50 USD
Availability: InStock

Bussmann FNQ-R-3/10

Kirby Risk #: 484325

UPC: 05171249690, 051712496902, 00051712496902

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Bussmann

Description

Industry Description

3/10A 600V Class CC CC-Tron Time Delay Fuse

Modified Industry Description

3/10A 600V - TRON TIME DELAY MIDGET FUSE , 13/32 X 1 1/2 IN

AD Description

Bussmann CC-Tron® FNQ-R-3/10 Time Delay Fuse, 3/10 A, 600 VAC, 200 kA, Class CC, Cylindrical Body

Amperage Rating	3/10
Application	Line Protection, Small Control Transformers, Industrial Control, Isolated, In-Line Fuse Holders
Brand Name	Bussmann
Characteristics	Time Delay
Connection	Ferrule End X Ferrule End
Country of Origin	MX
Element	Dual
Interrupt_Rating	200
Material	Melamine
Model	FNQ-R
Package_Quantity	1
Response_Time	12
Size	13/32 In Diameter X 1-1/2 In Length
Special Features	200 kA interrupt rating provides high ratings for control circuit locations Class CC rejection feature, with appropriate fuse block, prevents inserting lesser rated supplementary fuses Current limitation at class CC levels provides maximum component short circuit current rating protection Nickel plated brass endcaps Time delay compatible with inrush characteristic of small control transformers
Standard	UL 248-4, CSA, CE
Sub_Brand	Cooper Bussmann
Type_Of_Indicators	Non-Indicating
Type	Current Limiting, High Inrush Time Delay
Voltage Rating	600
