Hoffman Hoffman A30P24AL
Hoffman A30P24AL
Kirby Risk #: 484261
UPC: 78351023440, 783510234409, 00783510234409
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hoffman
Description
Industry Description
Panels for Type 3R, 4, 4X, 12 and 13 Enclosures, fits 30x24, Aluminum
Modified Industry Description
PANEL 27.00X21.00 FITS 30.00X2
AD Description

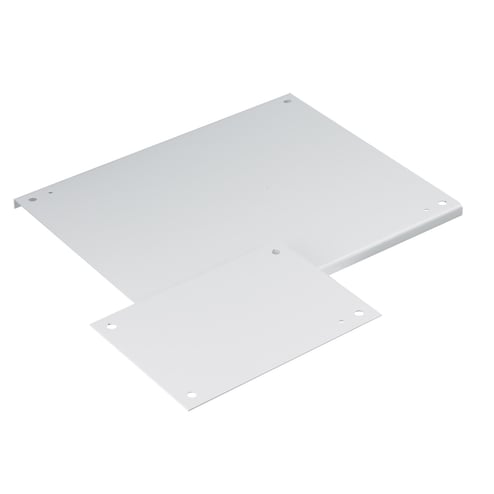

Hoffman A30P24AL PNLWM Enclosure Panel, 21 in W x 27 in H, Aluminum
Vendor Description
Steel panels are 11 or 12 gauge, finished with white polyester powder paint or a conductive, corrosion-resistant coating. Larger panels have flanges on two or four sides. Some larger steel panels are 11 gauge and include extra holes for panel lifting. Aluminum panels are 5052-H32 aluminum alloy. Larger panels have flanges on four sides. Aluminum panels are protected on one side with a plastic film. Stainless steel panels are Type 316 stainless steel. Panel mounting hardware is furnished with all enclosures which accept these panels.
Specifications
| Application |
Steel panels are 12 gauge, finished with white polyester powder paint or a conductive, corrosion-resistant coating. Larger panels have flanges on two or four sides. Some larger steel panels are 10 gauge and include extra holes for panel lifting. Aluminum
|
|---|---|
| Brand Name |
Hoffman
|
| Color |
Aluminum
|
| Country of Origin |
MX
|
| Material |
Aluminum
|
| Series |
PNLWM
|
| Size |
fits 30X24 in
|
| Special Features |
|
| Sub_Brand |
Hoffman
|
| Type |
Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
|
