Bussmann Bussmann NO.226-R


Description

Industry Description

250V Class R RoHS Compliant Fuse Reducer

Modified Industry Description

200/60A 250V FUSE REDUCER CLASS R

AD Description

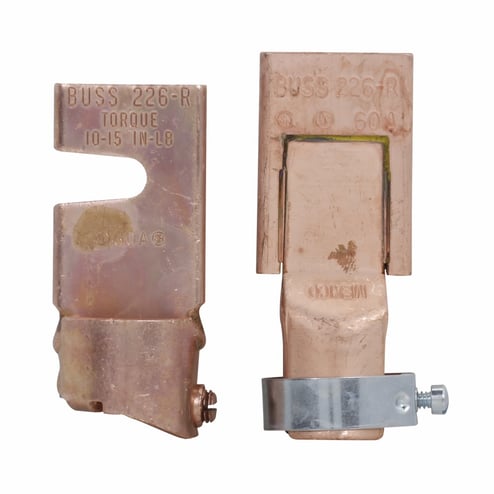

Bussmann Limitron™ NO.226-R Rejection Fuse Reducer, 250 VAC, 200 A, Class: R, 60 A Fuse

Vendor Description

A range of Bussmann® series fuse reducers for class H(K), J and R ferrule and blade fuses. fuse reducers install on fuse ferrules or blades to permit the application of smaller size fuses than those for which the fuse blocks or holders are designed.

Specifications

Amperage Rating
200
Application
Class R Dimension Fuses
Brand Name
Bussmann
Country of Origin
MX
Package_Quantity
1
Special Features

  • 1 pair of reducers
  • Allows 35 - 60 A fuse to fit 200 A fuse block
  • For use with FRN-R, LPN-RK, FRS-R, LPS-RK KTN-R, KTS-R series class R ferrule and blade end fuses
  • Fuse reducers install on fuses and permit smaller size fuses to be used in larger amp size switches and blocks
  • Reducers fit into most panels or switches including the Dead-front type
  • Reducers will fit into any panel or switch including the dead front type
  • Short-circuit current rating (SCCR) up to fuse interrupting rating
  • Strong contact is maintained both mechanically and electrically
  • There are no reducers for switching from one class to another
  • There are no reducers to go from 250 to 600 VAC
Standard
UL, CSA
Sub_Brand
Cooper Bussmann
Type
Fuse Reducer
Voltage Rating
250
