Hubbell Hubbell HBL7413C
Hubbell HBL7413C
Kirby Risk #: 484069
UPC: 78358503758, 783585037585, 00783585037585
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

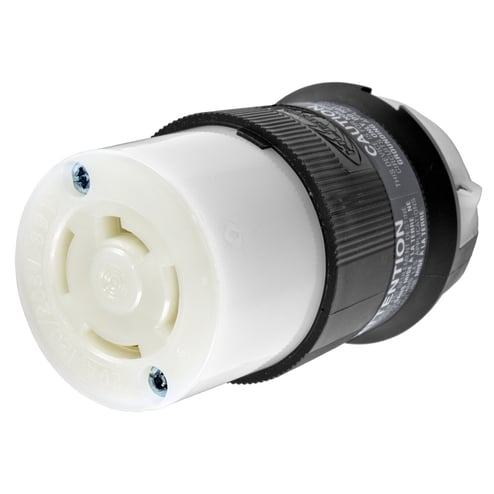

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, Non-NEMA, ScrewTerminal, Black and White
Modified Industry Description
20A 120/208V - LOCKING Female Connector, 4 Pole, 4 Wire
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL7413C Heavy Duty Shrouded Watertight Locking Connector, 120/208Y VAC, 20 A, 4 Poles, 4 Wires, Black/White
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black and White
|
| Conductor Range |
#14AWG - #12AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
PR
|
| Enclosure |
NEMA 4/4X/12/IP66
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Nylon
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
Non NEMA
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
4-Wire Non-Grounding
|
| Number_Of_Poles |
4
|
| Number_Of_Wires |
4
|
| Poles |
4
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL498
|
| Sub_Brand |
Twist-Lock
|
| Temperature_Rating |
-40 to 75
|
| Type |
Connector Body
|
| Voltage Rating |
120/208
|
