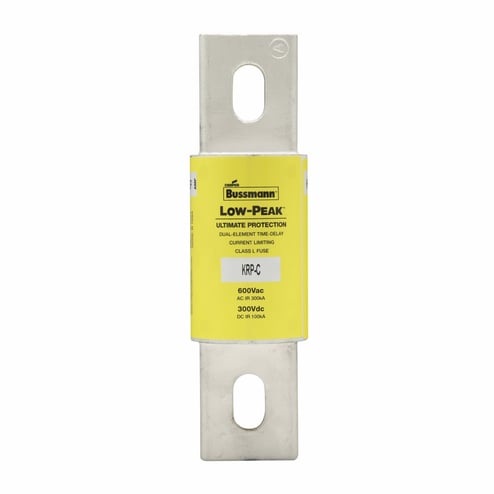

Bussmann Bussmann KRP-C-800SP


Description

Industry Description

800A 600V Class L Low Peak Time Delay Fuse

Modified Industry Description

800A 600V - Class L Low Peak Time Delay Fuse

AD Description

Bussmann Low-Peak™ KRP-C-800SP Current Limiting Time Delay Fuse, 800 A, 600 VAC/300 VDC, 300/100 kA, Class L, Cartridge Body

Vendor Description

EATON Bussmann series Low-Peak™ ultimate protection fuses are the industry's only UL® listed and CSA Certified fuses with a 300 kA interrupting rating, providing 50% more protection than any other listed fuse. The high interrupting rating allows for simple, worry free installation in virtually any application.

Specifications

Amperage Rating
800
Application
Large Distribution Switchboards, Large Machinery Disconnects, Power Panelboards
Brand Name
Bussmann
Characteristics
Time Delay
Connection
Bolted Blade End x Bolted Blade End
Country of Origin
MX
Element
Dual
Interrupt_Rating
300/100
Material
Melamine
Model
KRP-C
Package_Quantity
1
Response_Time
4
Size
2.50 In Diameter X 8.63 In Length
Special Features

  • 99.9% pure silver links provide low watt loss with low operating temperature on normal current levels and minimizes total clearing it fault energy left through
  • All purpose silver linked fuse for both overload and short circuit protection for high capacity systems
  • Consistent 2:1 ampacity ratios for all Low-Peak® fuses make selective coordination easy
  • Current limiting action of the fuse generally affords considerable reduction in bus bracing
  • Fast short circuit protection with time delay performance provide ultimate protection
  • High grade silica sand filler accelerates response of fuse to short circuits by having quenching effect on the fuse arc
  • O-ring seals maximize pressure build-up during current limiting action and ensure filter retention
  • Silver plated end bell
  • Time delay for close sizing load
Standard
UL 248-10, CSA C22.2, CE
Sub_Brand
Cooper Bussmann
Type_Of_Indicators
Non-Indicating
Type
Current Limiting
Voltage Rating
600 VAC/300 VDC
