Hubbell Hubbell HBL21420


Description

Industry Description

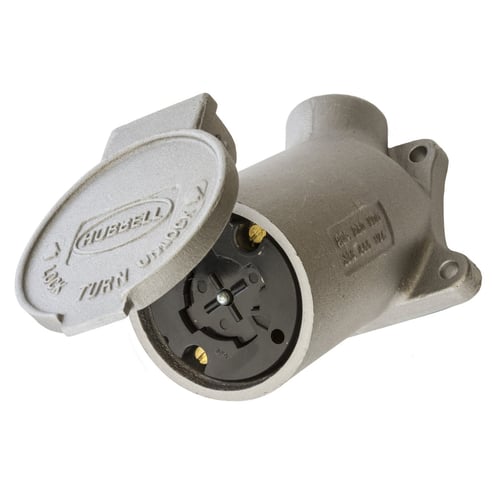

Hubbell Wiring Device Kellems, Locking Devices, Hubbellock, Industrial,Flanged Receptacle, 30A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Cast Aluminum, Angled Surface Mounted Housing

Modified Industry Description

30A 600V - BLACK LOCKING FLANGED RECEPTACLE, 3 POLE, 4 WIRE

AD Description

Wiring Device-Kellems Hubbellock® HBL21420 Grounding Midget Single Locking Receptacle, 600 VAC/250 VDC, 20/30 A, 3 Poles, 4 Wires, Metallic

Specifications

Amperage Rating
30/20
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Black
Connection
Screw Terminal
Conductor Size
#12 AWG to #10 AWG
Country of Origin
US
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Composite
Mounting
Screw Mount
NEMA_Rating
Non-NEMA
Number_Of_Poles
3
Number_Of_Wires
4
Phase
Multi-Phase
Poles
3
Size
Standard Sized Product
Special Features

  • 0.032 in bronze contact spring material
  • 0.032 in bronze ground contact material
  • 20 A 12 AWG and 30 A 10 AWG terminal accommodation
  • 30 A at 600 VAC, 20 A at 250 VDC multi-rating
  • Angled aluminum housing with 3/4 in NPT hub for surface mounting
  • Angled housing reduces the profile of the device and makes mating and un-mating easier
  • Black polyester body contact carrier
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
  • Cast aluminum cover (top) and base
  • Certified for current interrupting at full rated current
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • Molded in or stamped on ratings
  • Permanently ink marked on product catalog number
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Spring loaded safety shutter contains arcing when mating or unmating devices under load
  • Standard style
  • Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
  • UL 94 VO for receptacles and inlets, HB or better for plugs and connectors flammability
  • Withstand 2000 VAC minimum dielectric voltage
  • Zinc plated steel pressure screw terminal, ground screw and mounting screw
Standard
UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Single
Voltage Rating
30 A 600 AC 20 A 250 DC
Wattage
18000Watts
