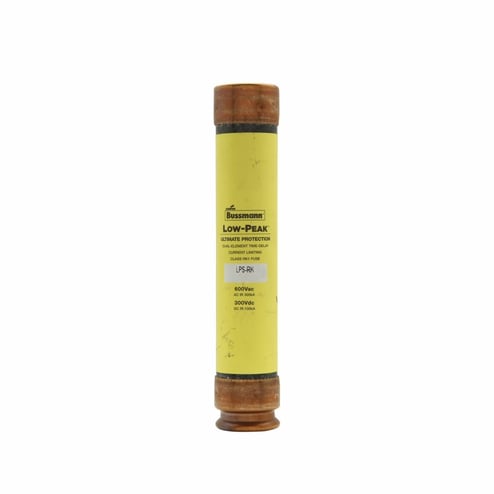

Bussmann Bussmann LPS-RK-35SP


Description

Industry Description

35A 600V Class RK1 Low Peak Dual Element, Time Delay Fuse

Modified Industry Description

35A 600V - RK1 LOW PEAK DUAL ELEMENT TIME DELAY FUSE

AD Description

Bussmann Low-Peak™ LPS-RK-35SP LPS-RK-SP Time Delay Fuse, 35 A, 600 VAC/300 VDC, 300/100 kA Interrupt, RK1 Class, Cylindrical Body

Vendor Description

Ultimate protection Class RK1 dual element, current-limiting, time-delay fuses available with optional open fuse indication on select ratings. Time-delay 10 seconds (minimum) at 500% of rated current.

Specifications

Amperage Rating
35
Application
Large Distribution Switchboards, Power Panelboards, Motor Control Centers, Machinery Disconnect Switches
Brand Name
Bussmann
Characteristics
Time Delay
Connection
Ferrule End X Ferrule End
Country of Origin
MX
Element
Dual
Interrupt_Rating
300000 Amp (RMS Symmetrical), 100000 Amp (DC)
Model
LPS
Package_Quantity
1
Response_Time
10 S at 500%
Size
1.06 In Diameter X 5.50 In Length
Special Features

  • 300 kA VAC RMS Sym, 100 kA VDC
  • Consistent 2:1 ampacity ratios for all low peak fuses make selective coordination easy
  • Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
  • Fast short circuit protection and dual element, time-delay performance provide ultimate protection
  • Proper sizing can provide No Damage Type 2 motor starter protection for NEMA® and the international electrotechnical commission (IEC) motor controllers
  • Protects against single phase motor damage
  • Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak™ fuses
  • Time-delay permits sizing as close as 130% of motor Full Load Amps (FLA) for back-up overload protection
Standard
UL, CSA C22.2, CE
Sub_Brand
Cooper Bussmann
Type_Of_Indicators
Non-Indicating
Type
Current Limiting, Time Delay
Voltage Rating
600
