Bussmann Bussmann KTK-R-1


Description

Industry Description

1A 600V Class CC Limitron Fast Acting Fuse

Modified Industry Description

1A 600V - LIMITRON FAST ACTING MIDGET REJECTION STYLE

AD Description

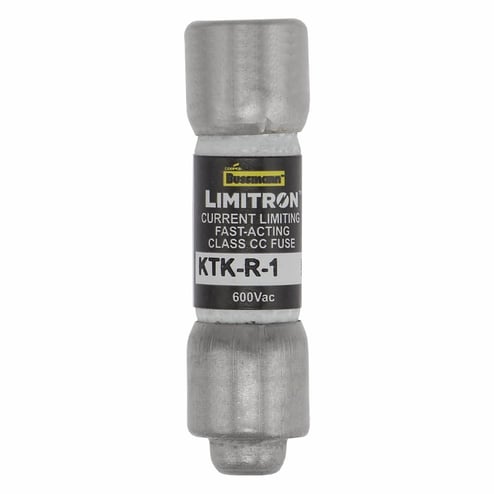

Bussmann LIMITRON™ KTK-R-1 Fast Acting Fuse, 1 A, 600 VAC, 200 kA, Class CC, Cylindrical Body

Vendor Description

Eaton™s Bussmann series Limitron fuses provide short circuit protection that is, on average, 10X faster than basic circuit breakers or fuses. These current-limiting UL® and CSA Listed fuses are available in Class CC, J, R, and T - all with a 200kA interrupting rating.

Specifications

Amperage Rating
1
Application
Specialized Circuits, Industrial Control, Isolated, Inline-Fuse Holders (Street Lighting), Branch Circuits
Brand Name
Bussmann
Characteristics
Fast Acting
Connection
Ferrule End X Ferrule End
Country of Origin
MUL
Element
1
Interrupt_Rating
200
Material
Melamine
Model
KTK-R
Package_Quantity
10
Size
13/32 In Diameter X 1-1/2 In Length
Special Features

  • 200kA VAC (RMS Symmetrical) interrupting rating complies with NEC Section 110.9 for todays large capacity systems
  • Class CC rejection feature, with appropriate fuse block, prevents inserting lesser rated supplementary fuses
  • Fast-acting fuse helps prevent equipment damage caused by short circuit events
  • Ideal for critical industrial or commercial applications that have specific current limitation requirements
  • Nickel plated bronze end cap
  • Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
  • Rejection type fuse fits both standard and rejection-style holders
Standard
UL 248-4, CSA C22.2, CE
Sub_Brand
Cooper Bussmann
Type_Of_Indicators
Non-Indicating
Type
Fast Acting
Voltage Rating
600
Width_2
0.4100
