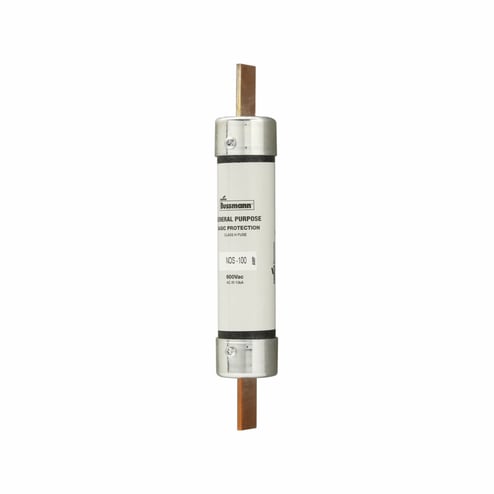

Bussmann Bussmann NOS-100

Name: Bussmann NOS-100
Brand: Bussmann
SKU: 482396
Price: 159.55 USD
Availability: InStock

Bussmann NOS-100

Kirby Risk #: 482396

UPC: 05171231100, 051712311007, 00051712311007

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Bussmann

Description

Industry Description

100A 600V Class H One-Time Fuse

Modified Industry Description

100A 600V CLASS H ONE TIME FUSE

AD Description

Bussmann NOS-100 Non-Current Limiting One Time General Purpose Fuse, 100 A, 600 VAC, 10 kA Interrupt, H Class, Cartridge Blade Body

Amperage Rating	100
Application	Light Duty Circuit Locations
Brand Name	Bussmann
Characteristics	One Time
Connection	Blade End X Blade End
Country of Origin	MX
Interrupt_Rating	10000 Amp (RMS Symmetrical)
Model	NOS
Package_Quantity	1
Size	1.34 In Diameter X 7.90 In Length
Special Features	Do not have any appreciable degree of time delay and thus should not be specified in circuits where large transients or motor overloads occur For general purpose circuits, size at amp rating of circuit For motor circuits, size at 300% to 400% according to the NEC motor ampacity tables 430.247 to 430.250 per 430.6(A)(1) Original fuse providing circuit protection Protect lighting, heating and other circuits not subject to temporary surges and where available short circuit currents are relatively low Use Bussmann advanced protection Fusetron™ LPS-R or ultimate protection Low-Peak™ LPS-RK dual element, time delay fuses
Standard	UL 248-6, CSA, CE
Sub_Brand	Cooper Bussmann
Type_Of_Indicators	Non-Indicating
Type	Non Current Limiting
Voltage Rating	600
