O-Z/Gedney O-Z/Gedney 4Q-450T


Description

Industry Description

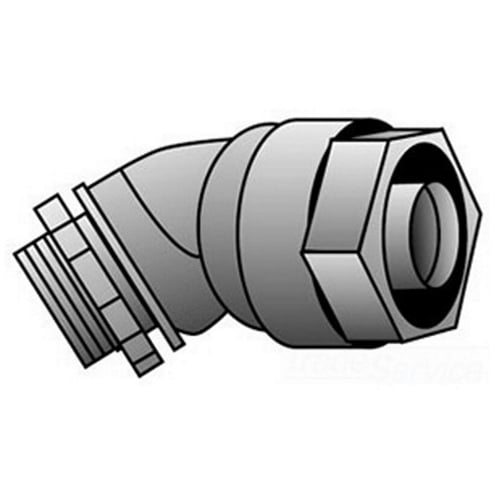

OZ-Gedney Type 4Q-T Liquid Tight 45 DEG Connector, Size: 1/2 IN, Connection: Compression X Tapered MNPT Hub, Malleable Iron Body And Nut, Steel Ferrule, Finish: Zinc Electroplated, NEMA Rating: NEMA 4, Insulated Throat, 1-1/4 IN Width, Dimension A

Modified Industry Description

4 1/2 IN Straight Insulated Liquidtight Connector

Specifications

Application
For Liquidtight Flexible Metal Conduit
Brand Name
O-Z/Gedney
Connection
Compression X Tapered MNPT Hub
Country of Origin
MX
Finish
Zinc Electroplated
Insulation
Insulated
Material
Malleable Iron
NEMA_Rating
NEMA 4
Special Features

  • Bonding wedge locknuts are recommended in hazardous locations
  • Compact, slim diameter with small turning radius
  • Inspection windows in ferrule to ensure full conduit engagement
  • Insulated throat to protect against wire damage
  • Intrinsically safe
  • Long ferrule prevents pullout and tight bend conduit "pop-out"
  • Reusable ferrule
  • Suitable for wet locations
  • Tapered threaded male NPT hub
Standard
Third Party Certification: UL File Number 11853, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20
Sub_Brand
O-Z/Gedney
Trade_Size
1/2
Type
Concretetight Liquidtight Oiltight Raintight
