O-Z/Gedney O-Z/Gedney SR502
O-Z/Gedney SR502
Kirby Risk #: 482232
UPC: 78312650720, 783126507201, 00783126507201
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: O-Z/Gedney
Description
Industry Description

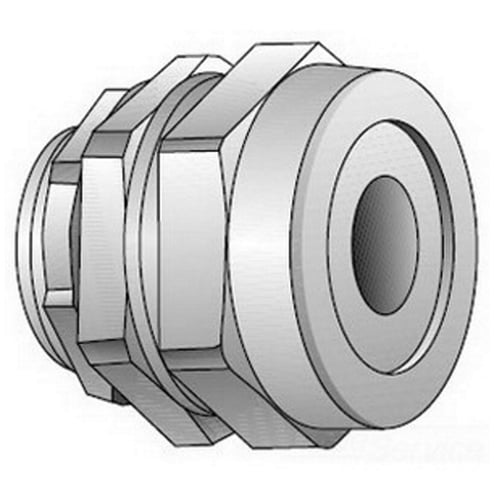

OZ-Gedney Type SR Gold Seal Strain Relief Straight Connector, Size: 1/2 IN, Conductor Range: 0.1 - 0.2 IN, Malleable Iron, PVC Grommets, Finish: Zinc Plated, 90 DEG C, Connection: MNPT, 0.52 IN Throat Inside Diameter, 9/16 IN Thread Length, Dimensi
Modified Industry Description
1/2 IN STR STRAIN RLF CONN
Specifications
| Application |
For Securing And Sealing Cords And Cables Entering Enclosures Or Raceways
|
|---|---|
| Connection |
MNPT
|
| Country of Origin |
MX
|
| Dimensions |
1.06 in Dia x 1.13 in L
|
| Finish |
Zinc Plated
|
| Length1 |
5.4000
|
| Material |
Malleable Iron
|
| Series |
SR Series
|
| Size |
1/2
|
| Special Features |
|
| Standard |
Third Party Certification: UL File Number E-11857, CSA 009795
|
| Temperature_Rating |
90
|
| Type |
Strain Relief
|
