O-Z/Gedney O-Z/Gedney SR75375


Description

Industry Description

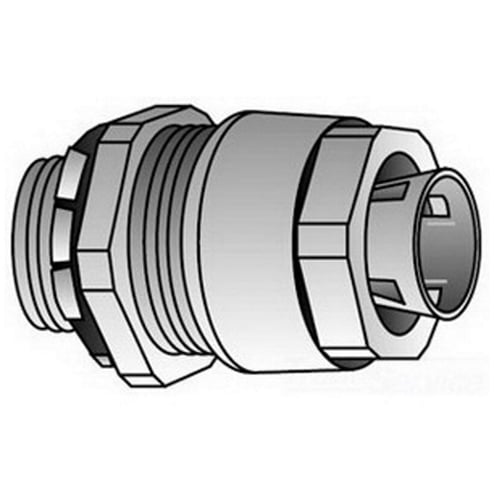

OZ-Gedney Type SR Grip-Tite Strain Relief Straight Connector, Size: 3/4 IN, Conductor Range: 0.25 - 0.375 IN, Malleable Iron Body And Gland Nut, Nylon Gripper, Neoprene Grommet, PVC Or Buna-N Sealing Ring, Steel Locknut, Finish: Zinc Plated Body

Modified Industry Description

3/4 IN STR STRAIN RLF CONN

Specifications

Application
For Securing And Sealing Cords Or Cables Entering Enclosures Or Raceways
Color
White
Connection
Tapered MNPT
Country of Origin
MX
Enclosure
NEMA 4
Finish
Zinc Plated
Length1
6.9000
Material
Iron/Neoprene/Nylon/PVC/Steel
NEMA_Rating
NEMA 4
Size
3/4
Special Features

  • Colored gripper allows for easy identification
  • Dual-grommet style for over 1 in diameter cord range
  • Furnished complete with sealing ring and locknut
  • Grip-tite style-2-piece internal design features a nylon gripper for exceptional pullout protection and a neoprene grommet for a moisture-proof seal
  • Liquid tight or oil tight or raintight
  • Removable insert allows for wider range of cable diameters within single fitting
  • Suitable for NEMA 4 enclosures and other wet locations
  • UL Listed NEMA 4, 6 and 12 when installed into a NPT threaded entry or UL Listed conduit hub
Standard
Third Party Certification: UL File Number E-11857, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, Suitable for use in Hazardous Locations under NEC Sec. 501-4(b), 502-4(a) (2), and 503-3(a), For Class I, Division 2, Class II, Division 1, 2, and Class III, Division 1, 2
Temperature_Rating
90
Type
SR Grip-Tite Strain Relief Straight Connector
