Thomas & Betts Thomas & Betts 10RC-10
Thomas & Betts 10RC-10
Kirby Risk #: 479227
UPC: 78621080042, 786210800424, 00786210800424
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

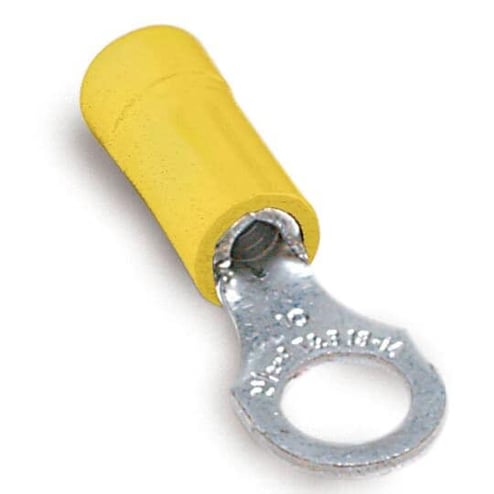

Vinyl-Insulated Ring Terminal, Length 1.06 Inches, Width .31 Inches, Maximum Insulation .210, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
Modified Industry Description
12 TO 10 AWG, 10 BOLT - RING TERMINAL, VINYL INSULATED, YELLOW
AD Description
Sta-Kon® 10RC-10 RC Series Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.06 in L, Brazed Seam Barrel, Copper, Yellow
Vendor Description
Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Color |
Yellow
|
| Conductor Range |
12-10
|
| Conductor Size |
12 to 10
|
| Country of Origin |
US
|
| Finish |
Tin Plated
|
| Insulation_Material |
Vinyl
|
| Material |
Copper
|
| Package_Quantity |
50
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
#10
|
| Sub_Brand |
Sta-Kon
|
| Type |
Insulated
|
| Voltage Rating |
600
|
