Thomas & Betts Thomas & Betts RBD14-182


Description

Industry Description

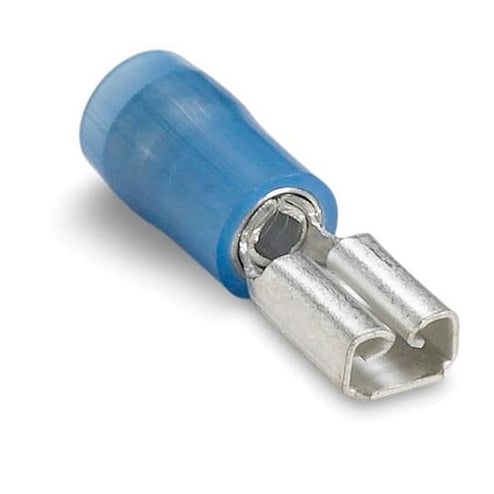

Nylon Insulated Female Disconnect, Length .83 Inches, Width .23 Inches, Maximum Insulation .163, Tab Size .187x.020, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated

Modified Industry Description

FEMALE DISCONNECT 16 - 14 AWG TAB .187 NYLON INSULATED BLUE

AD Description

Sta-Kon® RBD14-182 187 Female Disconnect, 16 to 14 AWG Conductor, 0.187 in W x 0.02 in THK Tab, Internal Serration Long Barrel, Brass, Blue, Insulated

Vendor Description

Wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.

Specifications

Brand Name
Thomas & Betts
Color
Blue
Conductor Range
16-14
Conductor Size
16 to 14
Country of Origin
US
Finish
Tin Electro-Plated
Insulation
Insulated Nylon
Insulation_Material
Nylon
Material
Brass
Package_Quantity
100
Special Features

  • Color-coded for easy installation
  • Funnel entry insulators enable easier inserting of wire into barrel
  • Internal barrel serrations and long barrel provide for maximum tensile strength
  • Nylon insulated
  • Quick, reliable method of connection to terminal blocks and boards without the use of tools
  • Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003 tools
  • Unique construction of the female disconnect offers long term dependability
Standard
UL E66716
Sub_Brand
Sta-Kon
Tab_Size
0.187 in W x 0.02 in THK
Type
Insulated
Voltage Rating
600
