Thomas & Betts Thomas & Betts RA18-6


Description

Industry Description

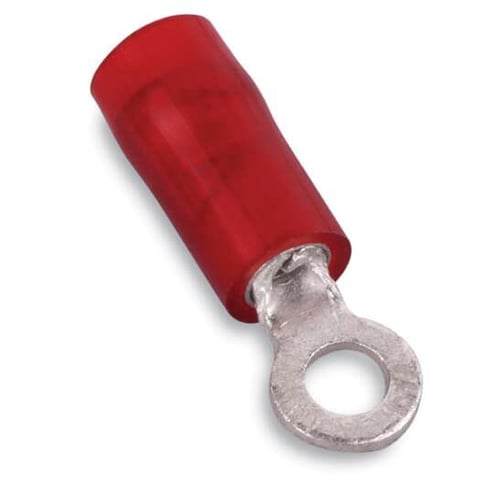

Nylon Insulated Ring Terminal, Length 0.86 Inch, Width 0.26 Inch, Max Insulation 0.136, Bolt Hole #6, Wire Range #22-16 AWG, Color Red, Copper, Tin Plated

Modified Industry Description

22 TO 16 AWG, 6 BOLT - RING TERMINAL, NYLON INSULATED, RED

AD Description

Sta-Kon® RA18-6 RA Series Insulated Ring Terminal, 22 to 16 AWG Conductor, 0.86 in L, Insulation Grip Sleeve Barrel, Copper, Red

Vendor Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Specifications

Brand Name
Thomas & Betts
Color
Red
Conductor Range
22-16
Conductor Size
22 to 16
Country of Origin
US
Finish
Tin Plated
Insulation_Material
Nylon
Material
Copper
Package_Quantity
100
Special Features

  • 100 pieces/pack
  • An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
  • Made of copper and has electro-tin plating for high conductivity/corrosion resistance
  • Self-insulated with high dielectric strength nylon sleeves
Standard
UL E9809
Stud_Size
#6
Sub_Brand
Sta-Kon
Type
Insulated
Voltage Rating
600
