Thomas & Betts Thomas & Betts 14RBC-12


Description

Industry Description

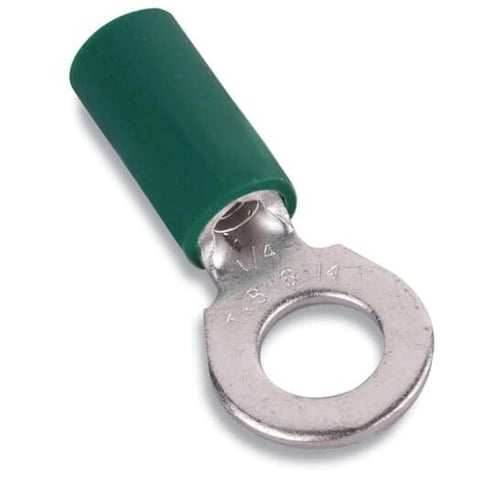

Vinyl-Insulated Heavy-Duty Ring Terminal, Length 1.57 Inches, Width 0.76 Inch, Maximum Insulation 0.21, Bolt Size 1/2 Inch, Wire Range 16-14 Heavy Duty AWG, Color Green, Copper, Tin Plated

Modified Industry Description

RING TERMINAL VINYL 16 - 14 AWG GREEN HVY DTY STUD SIZE 1/2

AD Description

Sta-Kon® 14RBC-12 RB Series Heavy Duty Insulated Ring Terminal, 16 to 14 AWG Conductor, 1.57 in L, Brazed/Overlapped Seam Barrel, Copper, Green

Vendor Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.

Specifications

Brand Name
Thomas & Betts
Color
Green
Conductor Size
16 to 14
Country of Origin
US
Finish
Tin Plated
Material
Copper
Package_Quantity
50
Special Features

  • 50 pieces/pack
  • Deep internal serrations that prevents pullout from vibration and mechanical strain
  • Made of copper and has electro-tin plating for corrosion-resistance
  • Terminal features funneled barrel entry that accepts heavily insulated wire and brazed or overlapping seams for proper electrical flow
Standard
UL E9809
Stud_Size
1/2
Sub_Brand
Sta-Kon
Type
Heavy Duty Insulated
Voltage Rating
600
