Thomas & Betts Thomas & Betts RB14-110F
Thomas & Betts RB14-110F
Kirby Risk #: 478861
UPC: 78621080686, 786210806860, 00786210806860
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

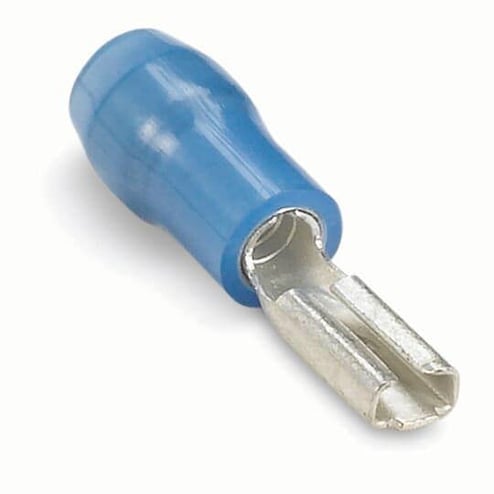

Nylon Insulated Female Disconnect, Length .75 Inches, Width 0.15, Maximum Insulation .135, Tab Size .110x.032, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated, 100 Pack
Modified Industry Description
NYLON INSULATED BLUE FEMALE DISCONNECT, 16 TO 14 AWG, TAB 0.110, 100 PACK
AD Description
Sta-Kon® RB14-110F Female Disconnect, 16 to 14 AWG Conductor, 0.11 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass, Blue, Insulated
Vendor Description
Wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Color |
Blue
|
| Conductor Range |
16-14
|
| Conductor Size |
16 to 14
|
| Country of Origin |
US
|
| Finish |
Tin Electro-Plated
|
| Insulation |
Insulated Nylon
|
| Insulation_Material |
Nylon
|
| Material |
Brass
|
| Package_Quantity |
100
|
| Special Features |
|
| Sub_Brand |
Sta-Kon
|
| Tab_Size |
0.11 in W x 0.032 in THK
|
| Type |
Insulated
|
| Voltage Rating |
600
|
