Thomas & Betts Thomas & Betts F4-516
Thomas & Betts F4-516
Kirby Risk #: 478831
UPC: 78621080364, 786210803647, 00786210803647
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

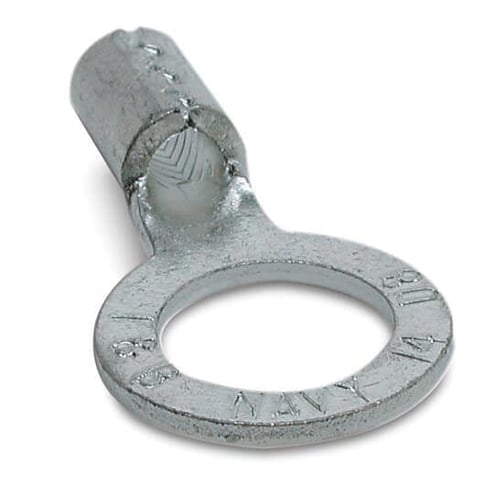

Non-Insulated Large Brazed Seam Ring Terminal, Length 1.35 Inches, Width .60 Inches, Bolt Hole 5/16 Inch, Wire Range #4 AWG, Copper, Tin Plated, 20 Pack
Modified Industry Description
BRAZED SEAM Ring Terminal uninsulated 4awg 5/16 Bolt Hole
AD Description
Sta-Kon® F4-516 F Series Non-Insulated Ring Terminal, 4 AWG Conductor, 1.35 in L, Brazed Seam/Serrated Barrel, Copper, Metallic
Vendor Description
Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Color |
Metallic
|
| Conductor Range |
4-3
|
| Conductor Size |
4
|
| Country of Origin |
US
|
| Finish |
Tin Plated
|
| Insulation_Material |
Non Insulated
|
| Material |
Copper
|
| Package_Quantity |
20
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
5/16
|
| Sub_Brand |
Sta-Kon
|
| Type |
Non-Insulated
|
| Voltage Rating |
600
|
