Thomas & Betts Thomas & Betts TY5244M


Description

Industry Description

Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 368.3mm (14.5 Inches), Width of 3.51mm (0.138 Inch), Thickness of 0.75mm (0.03 Inch), Tensile Strength Rating of 134 Newtons (30 Pounds)

Modified Industry Description

14 1/2 IN NATURAL NYLON CABLE TIE WITH STAINLESS STEEL LOCKING

AD Description

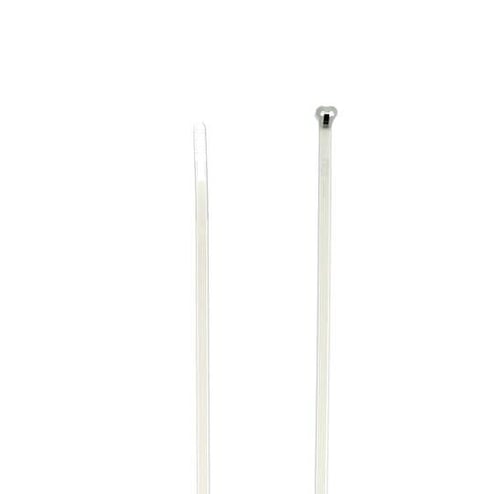

Ty-Rap® TY5244M 2-Piece Standard Cable Tie, 14-1/2 in L x 0.138 in W x 0.041 in THK, Nylon/Polyamide 6.6, Natural

Vendor Description

Innovative design and engineered materials make Ty-Rap® cable ties the perfect fastening solution where performance really matters. Often imitated but never equaled, Ty-Rap® cable ties provide superior performance in any application.

Specifications

Brand Name
Thomas & Betts
Bundle_Diameter
0.08 to 4.05
Color
Natural
Country of Origin
HU
Lock_Mechanism
Stainless Steel Barb
Material
Nylon/Polyamide 6.6
Package_Quantity
100
Special Features

  • 14-1/2 in L nominal
  • Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads
  • Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time
  • Provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed
  • Ribbed and stippled body grips the bundle and prevents slippage, rounded edges protect insulation, preventing sharp edges from damaging cables
  • Smooth, notch less body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties
  • The no slip tail provides easy grip during tensioning
  • Ty-Rap® ties feature a unique friction surface designed to reduce slippage during installation
Standard
UL E49405
Sub_Brand
Ty-Rap
Temperature_Rating
-40 to 185
Tensile_Strength
30
Thickness
0.05
Trade_Size
14-1/2
Type
2-Piece Standard
