Thomas & Betts Thomas & Betts 14RB-6F

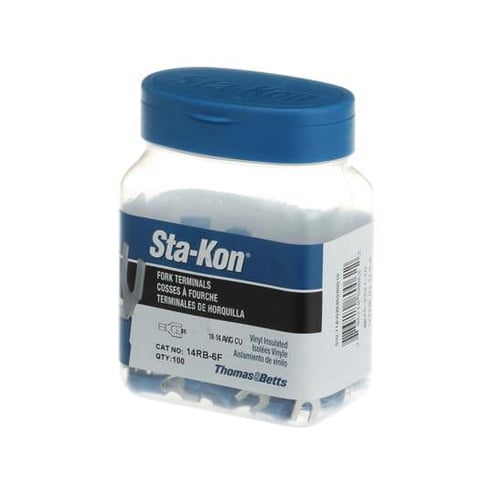

Thomas & Betts 14RB-6F
Kirby Risk #: 478565
UPC: 78621080062, 786210800622, 30786210800623
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description
Vinyl-Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #6, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
Modified Industry Description
18 TO 14 AWG RB SERIES BLUE VINYL INSULATED FORK TERMINAL, 6 STUD
AD Description
Sta-Kon® 14RB-6F RB Series Insulated Fork Terminal, 18 to 14 AWG Conductor, 0.97 in L, Brazed Seam/Serrated Barrel, Copper, Blue
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Color |
Blue
|
| Conductor Range |
18-14
|
| Conductor Size |
18 to 14
|
| Country of Origin |
US
|
| Finish |
Electro-Plated Tin
|
| Insulation_Material |
Vinyl
|
| Material |
Copper
|
| Package_Quantity |
100
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
#6
|
| Sub_Brand |
Sta-Kon
|
| Type |
Insulated
|
| Voltage Rating |
600
|
