Thomas & Betts Thomas & Betts 665-SC


Description

Industry Description

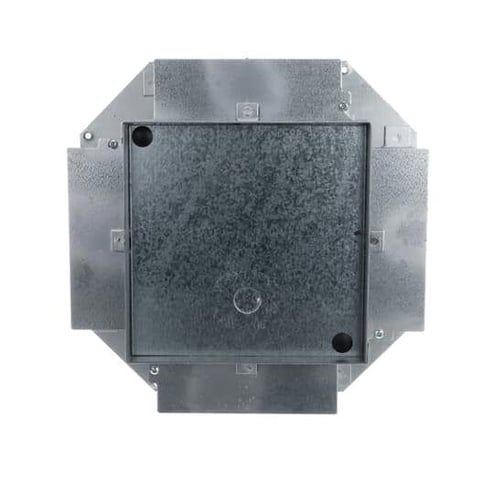

Four Gang Recessed Service Floor Box, 126 Cubic Inches for Device Access and 40 Cubic Inches for Device Compartments, Length 12-1/8 Inches, Width 12-1/8 Inches, Depth 3-1/2 Inches, Compartment Size Length 5-3/4 Inches, Width 2-3/4 Inches, Depth 2-1/2 Inches, 3/4 Inch and 1-1/4 Inch Knockouts, Galvanized Steel, Delivers Power, Communications and Data from Standard Conduit with No Exposed Service Fittings

Modified Industry Description

FLOOR BOX

AD Description

Steel City® 665-SC 665 Series Recessed Service Floor Box With Knockout, Stamped Steel, 126 cu-in Capacity, 4 Gangs, 4 Outlets, 28 Knockouts, 12-1/8 in L x 12-1/8 in W x 3-1/2 in H

Specifications

Application
Ideal for the modern office with workstations that have power, communications and data equipment.
Brand Name
Thomas & Betts
Country of Origin
US
Cubic_Capacity
126
Finish
Galvanized
Knockouts
True
Material
Stamped Steel
Special Features

  • 1-1/4 in, 3/4 in side, 1-1/4 in, 3/4 in bottom knockouts
  • 28 knockouts provide increased flexibility
  • 4 leveling screws provide 2-1/2 in pre-pour adjustment
  • Allows for shallow pours when needed
  • Allows installation of up to 4-device panels in one box
  • Delivers power, communications and data from standard conduit with no exposed service fittings
  • Feed-through from 4-sides allows installer to feed-through power or data/communication services from any orientation
  • Self-leveling covers provide 3/4 in after pour adjustment to accommodate different floor cover thicknesses
  • Total access area of 126 cu-in allows for friendly installation of workstation cables
Standard
E 2969
Sub_Brand
Steel City
Type
Recessed Service
Width_2
13.0000
