Thomas & Betts Thomas & Betts 54725
Thomas & Betts 54725
Kirby Risk #: 478240
UPC: 78621054725, 786210547251, 50786210547256
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

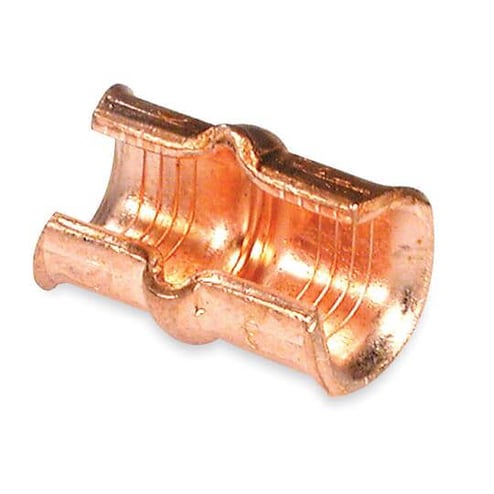

Copper C-Tap for 600V Applications, Wire Range Main: 5-3, Branch 6-12, Length 1-5/32 Inches, Height 13/16 Inch, Plain Finish, Die Code 37, Die Color Code Green
Modified Industry Description
5-3 GRN COP C-TAP
AD Description
Color-Keyed® 54725 Standard Compression Connector, C Shape, 1 Taps, 5 to 3 AWG Main/Run, 12 to 6 AWG Tap, Copper
Vendor Description
Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Conductor Type |
Solid/Stranded Copper
|
| Conductor Size |
5-3
|
| Country of Origin |
US
|
| Finish |
Plain
|
| Material |
Copper
|
| Package_Quantity |
100
|
| Special Features |
|
| Standard |
UL E9809
|
| Sub_Brand |
Color-Keyed
|
| Tap_Size |
12 to 6
|
| Type |
Standard
|
| Voltage Rating |
600
|
