Thomas & Betts Thomas & Betts 54443


Description

Industry Description

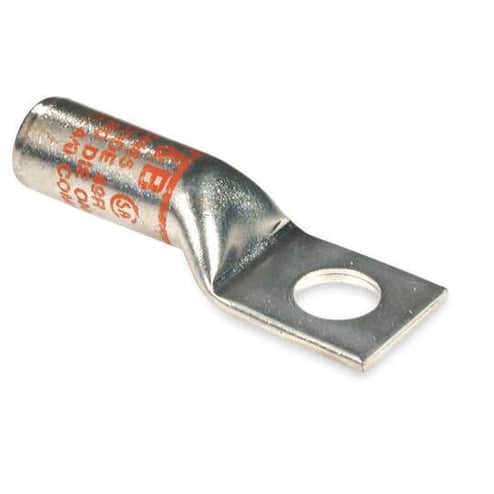

Copper One-Hole High Voltage Lug, Long Barrel, Blind End, 15kV, Wire Size #2 AWG, 3/8 Inch Bolt Size, Tin Plated, Die Code 33R, Die Color Code Brown

Modified Industry Description

T&B METHOD LUG

AD Description

Color-Keyed® 54443 54400 1-Hole High Voltage Compression Lug, 2 AWG Copper Conductor, Die Code: 33R, 3/8 in Stud, Copper

Vendor Description

These Color-Keyed® connectors are recommended for up to 15 kV applications. Installed with standard T&B® Cat. No. TBM15I, 13100A, TBM14M hydraulic compression tools with special rounding dies. The compression forms the connector and conductor into a solid mass to provide an optimum electrical bond between connector and conductor. The rounding die overlapped compressions provide a smooth round surface. This, combined with the tapered barrel ends, addresses the controlling of potentially damaging electrical stresses of high voltages.

Specifications

Brand Name
Thomas & Betts
Cable_Size
#2 AWG
Color
Brown
Conductor Material
Copper
Conductor Size
2
Country of Origin
MX
Insulation
None
Material
Copper
Number_Of_Holes
1
Package_Quantity
25
Special Features

  • Installed with standard t and b tools with special rounding dies
  • Recommended for up to 15 kV applications
  • Recommended for up to 15 kVAC applications, installed with standard t and b tools with special rounding dies
  • Round hole
  • The rounding die overlapped compressions provide a smooth round surface
  • This combined with the tapered barrel ends, addresses the controlling of potentially damaging electrical stresses of high voltages
  • Tin plated finish
Standard
UL E9809
Stud_Size
3/8
Sub_Brand
Color-Keyed
Temperature_Rating
105
Type
1-Hole High Voltage
Voltage Rating
600 VAC to 15 kV
