Thomas & Betts Thomas & Betts 8HPS


Description

Industry Description

Type HPS Split-Bolt Connector with Spacer, Conductor Range for Equal Main and Tap ACSR 8 Str-12 Sol, Conductor Range for Equal Main and Tap CU or AL 8 Str-12 Sol, Minimum Tap with One Max Main 12 Sol, Tin Plated

Modified Industry Description

SPLIT BOLT 8 - 10 AWG AL/CU

AD Description

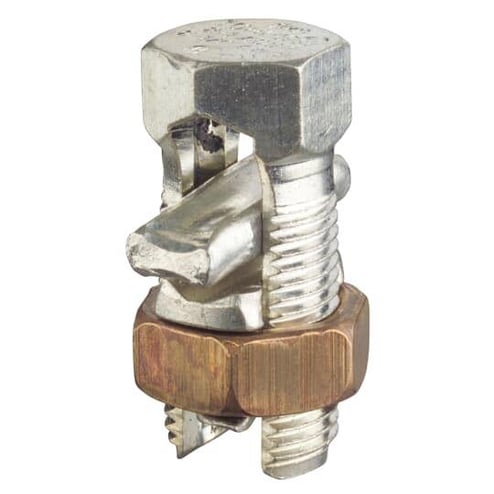

Blackburn® 8HPS Type HPS Split Bolt Connector With Spacer, 12 to 8 AWG ACSR/Solid/Stranded Aluminum/Copper Conductor, 3/8 x 29/32 in Bolt, Copper Alloy

Specifications

Application
Splicing, tapping or terminating conductors in power and grounding electrical connection.
Bolt_Size
3/8 x 29/32
Brand Name
Thomas & Betts
Color
Metallic
Conductor Size
12 to 8
Country of Origin
MX
Finish
Electro-Plated Tin
Material
Copper Alloy
Package_Quantity
1
Special Features

  • 12 AWG solid conductor range min tap with one max main
  • 8 AWG stranded to 12 AWG solid conductor range for equal main and tap
  • Blackburn® contax recommended when used on aluminum conductors
  • Bolt and pressure bar of copper alloy, completely tin plated for corrosion-resistance
  • Contoured spacer of electrolytic copper
  • Tin plated finish provides resistance to corrosion
Standard
UL E9809
Sub_Brand
Blackburn
Type
Type HPS
