Thomas & Betts Thomas & Betts ADR60
Thomas & Betts ADR60
Kirby Risk #: 477081
UPC: 78378661031, 783786610310, 30783786610311
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description
Type ADR-ALCUL Single-Conductor, One-Hole Mount, Conductor Range Max 600 kcmil, Min 2 Str, 3/8 Inch Bolt Hole, Length 3-3/16 Inch, Tin Plated
Modified Industry Description
EXTR ALUM LUG
AD Description

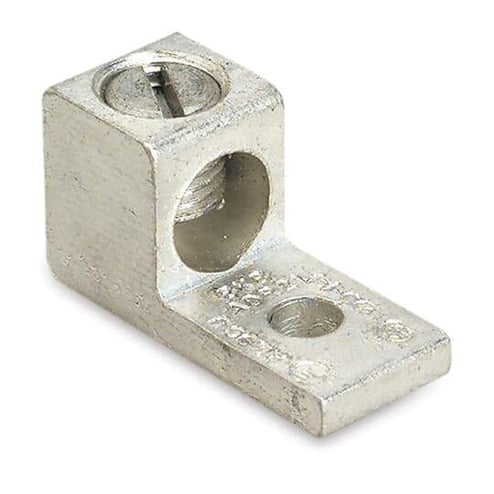

Blackburn® ADR60 Type ADR-ALCUL Dual Rated Mechanical Connector, 2 AWG to 600 kcmil Aluminum/Stranded Copper Conductor, 3/8 in Stud, 1 Bolt Holes, Aluminum
Vendor Description
Blackburn® cast, forged or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of UL and CSA certified solutions for your electrical interface needs.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Conductor_Range_Main_Primary |
2-600
|
| Conductor Size |
2 AWG to 600 kcmil
|
| Country of Origin |
MX
|
| Finish |
Tin Plated
|
| Insulation |
None
|
| Material |
Aluminum
|
| Mounting_Hole_Spacing |
3/8 in
|
| Number_Of_Mounting_Holes |
1
|
| Package_Quantity |
6
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
3/8
|
| Sub_Brand |
Blackburn
|
| Type |
Type ADR-ALCUL Dual Rated
|
| Voltage Rating |
600
|
