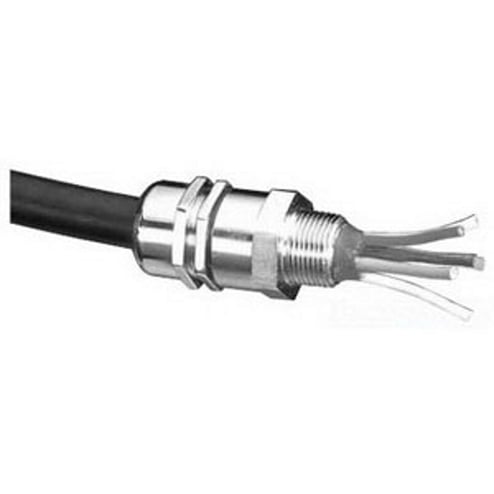

Appleton Appleton 32PX1005
Appleton 32PX1005
Kirby Risk #: 3691175
UPC: 78138124979, 781381249799, 00781381249799
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Appleton
Specifications
| Application |
For Unarmored, Tray And Shipboard Cables
|
|---|---|
| Connection |
NPT
|
| Country of Origin |
GB
|
| Finish |
Nickel Plated;Nickel-plated
|
| Length1 |
16.0000
|
| NEMA_Rating |
4X
|
| Size |
1 (32)
|
| Special Features |
Connector provides an environmental seal on the cable jacket and an explosion proof compound barrier seal around the cable inner cores;Entry thread seal not supplied;Flame proof compound barrier;Sealing area(s) - inner compound barrier and outer sheath;Sealing technique - SOLO LSF (low smoke fumes) thermoplastic elastomer displacement seal concept
|
| Standard |
UL 2225, E161256, CSA C22.2 No. 174, 101909, Deluge Protection To DTS01: 91, Code Of Protection Category: ATEX II 2 GD Ex d IIC And Ex e II, Ex nR II, Ex tD A21, Equipment Zone I, Zone 2, Zone 21 And Zone 22 - Gas Groups IIA, IIB, IIC
|
| Type |
PXSS2K Series Standard Cable Gland Connector
|
