TPI TPI 01031202


Description

Industry Description

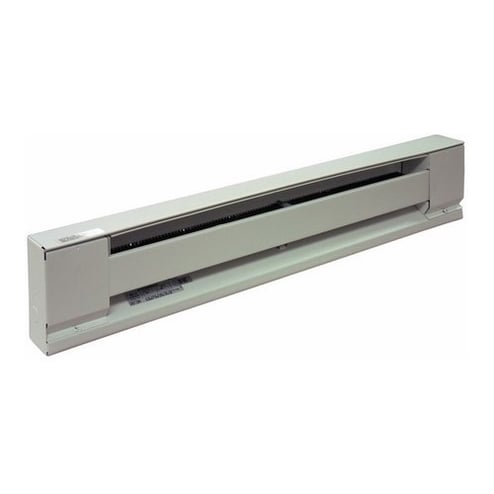

Electric Baseboard - Stainless Steel Element Convection Heater, 277 V, 1 PH, 4.7 AMP, Steel Housing Material, Wall Mounting, Dimensions- 84 Length X 2-1/2 Depth X 6 Height IN, 1313 WTT, BTU Rating- 4464, Ivory

Specifications

Amperage Rating
4.7
Application
Indoor-Commercial/Residential/Some Industrial
Country of Origin
US
Dimensions
84 X 2-1/2 X 6
Length1
88.0000
Mounting
Wall
Phase
1
Special Features

  • A full length wireway provided along the back of the heater
  • Heater can be mounted to the wall by using the key hole knockouts every 4 in at the back of the heater
  • Optional in-built thermostats field installed in the junction box
  • Over temperature thermal limit extends entire length of heated area
  • Painted 22 ga steel front with 20 ga junction boxes located on each end of the heater - junction boxes contain quick connect cable clamps and 6 in ground lead wires
  • Stainless steel heating element and aluminum fins
Standard
ETLus Listed
Type
Electric Baseboard
Voltage Rating
277
