Panduit Pan-Net Panduit Pan-Net S6222BU


Description

Industry Description

600mmW x 42 RU x 1200mmD S-Type Universal, Doors, Side Panels, CM, Casters, BL

AD Description

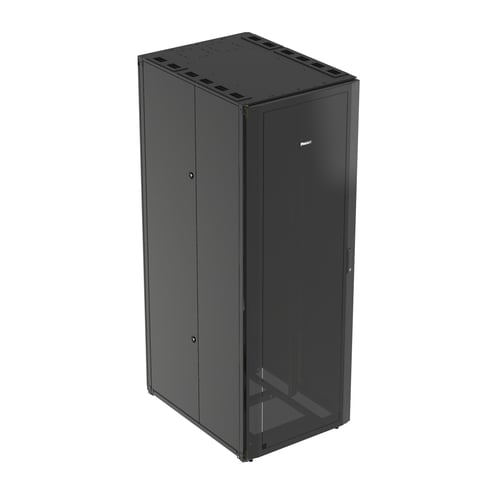

Panduit® Net-Access™ S6222BU Type S Standard Universal Cabinet, 600 mm W x 1200 mm D, Steel

Vendor Description

Net-Access™ S-Type universal cabinets are ideal for network or server application as these cabinets come standard with adjustable front and rear equipment rails to accommodate multiple applications. The top of cabinet includes molded edge protection and snap-in covers and pre-installed in cable entry openings to prevent air leakage. S-Type universal cabinets are manufactured with a welded and assembled steel frame and are available in multiple widths, depths and RU heights.

Specifications

Application
NA
Color
Black
Country of Origin
MEX
Length1
49.0000
Material
Steel
Special Features

  • 3000 lb static load rating and 2500 lb rolling load rating
  • Adjustable front and fear equipment rails
  • Cabinets and accessories are integrally bonded without the use of grounding wires to provide a safe and reliable network while reducing installation costs
  • Cabinets are powder coated in a durable, low maintenance polyester epoxy paint
  • Front and rear equipment rails accommodate cable management fingers
  • Front single hinge door and split perforated rear door with 69% open perforation
  • Fully integral bonded without the use of grounding wires equipment rails, door and side panels
  • Heavy duty casters and leveling legs
  • Integrated casters to provide easy roll to position, cable management ready rails included help speed deployment, easily adjustable rear rails can be quickly repositioned, heavy duty leveling legs can be accessed from top or bottom for faster deployment
  • N-type and S-type cabinets can be ganged together for complete streamlined appearance improving data center aesthetics
  • Panduit® cabinets, thermal ducting, Cool Boot® product, integral blanking panels, blanking foam strips and blanking shade provide a complete thermal and sealing solution by reducing bypass air and mixing of cold air and exhaust air within the cabinet for improved thermal efficiency
  • Provides bend radius control for each rack unit and can be positioned where required on cabinet posts for cable protection for increased network availability, provides design flexibility, scalability and improved aesthetics for easier moves, adds and changes
  • Vertically split hinged side panels
  • Wide range of cabinet designs available for specific thermal applications, resulting in improved thermal efficiencies and reductions in energy expenditures
Standard
EIA-310-E, TIA/EIA-942, UL Listed 2416, RoHS Compliant
Sub_Brand
Net-Access?„?
Type
S- Cabinet
