Ideal Ideal B2-SK


Description

Industry Description

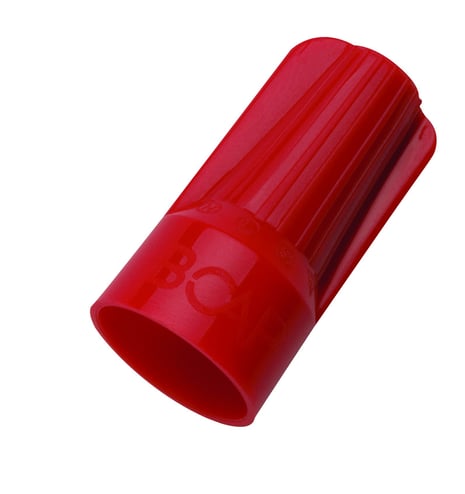

Buchanan, Wire Connector, B-CAP™, Conductor Range: 22 - 8 AWG, 2/18 AWG Min, 5/12 AWG MAX, Number Of Conductors: 2 to 6, Material: Flame-retardant Polypropelene, Color: Red, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F), Model Number: B2

AD Description

BUCHANAN B-CAP® B2-SK Flame-Retardant Wire Connector, Live Action Spring, 22 to 8 AWG Wire, Polypropylene

Specifications

Application
Insulating or Joining 1 or more conductors
Color
Red
Country of Origin
USA
Environmental_Conditions
Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F)
Length1
30.5000
Material
Flame Retardant Polypropylene
Number Of Conductors
2 to 6
Series
B2
Special Features

  • 1000 V maximum in fixtures and signs
  • Deep skirt helps protect against flash over and turned back strands for maximum dielectric protection
  • Easily removed for repeat usage on same size or larger wire combinations
  • Green-B designed for making ground connections and bonding non-metallic sheathed cable
  • Live action spring expands to accept wire shape and size
  • No pre-twisting required
  • Slim, classic fin design provides secure grip for extra leverage on maximum wire combinations
  • Square wire spring threads directly onto conductors for fast and secure connections
  • Three color coded models cover a full range of wire sizes from 22 to 6 AWG
Standard
CSA C22.2 #188, UL 486C Listed, RoHS
Sub_Brand
B-CAP®
Voltage Rating
600
