Panduit Panduit VS-AVT2-C08L10


Description

Industry Description

VeriSafe™ Absence of Voltage Tester for Class 1 Division 2 hazardous locations - 8ft. system cable, 10ft. sensor leads.

AD Description

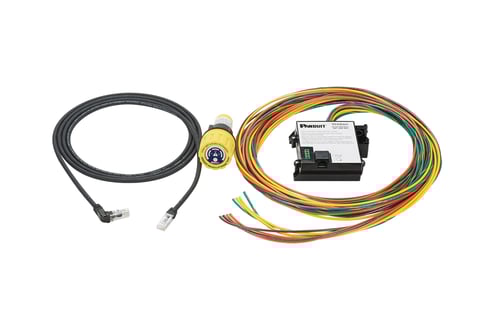

Panduit® VeriSafe™ VS-AVT2-C08L10 Voltage Tester With 8 ft System Cable and 10 ft Sensor Lead, 600 VAC/VDC Max Measurable

Vendor Description

When servicing electrical equipment, workers must comply with safety regulations that require a voltage verification test to validate the absence of voltage. This process includes a number of stages that can be complex and time consuming when using hand-held portable test instruments. The VeriSafe™ absence of voltage tester from Panduit® simplifies this process by automating the voltage verification process. Once installed, a simple push of a button enables qualified electrical workers to verify the absence of voltage and see an active indication when the absence of voltage is confirmed. This provides a new and innovative way to safely, reliably and efficiently verify the absence of voltage before accessing potentially dangerous electrical equipment.

Specifications

Country of Origin
TWN
Length1
16.7700
Special Features

  • All VeriSafe™ absence of voltage testers are tested to NEMA 4X/IP66/IP67 VS-AVT2 parts are rated to Class 1 division 2 and Class 1 zone 2 environments
  • Designed for testing 3-phase circuits upto 600 VAC install on-line or load side of electrical disconnect detects absence of AC and DC voltage
  • Improved safety and risk reduction, increased productivity
  • Reliable results, fail safe design with active indications
  • Simplified process for easier compliance

Standard
UL 50E; CSA C22.2 NO. 94.2-15; IEC 60529; IEC 61508-1; IEC 61508-2; IEC 61508-3; UL 508; CSA C22.2 NO.14-13; CSA C22.2 NO.61010-1; CSA C22.2 NO.61010-2-030-12; IEC 61010-1; IEC 61010-2-030; UL-61010-1; UL 61010-2-030; UL 1436; EN/AS/NZS/CISPR 61326-1, EN/A
Sub_Brand
VeriSafe
Type
Absence of Voltage Tester
Voltage Rating
NA
