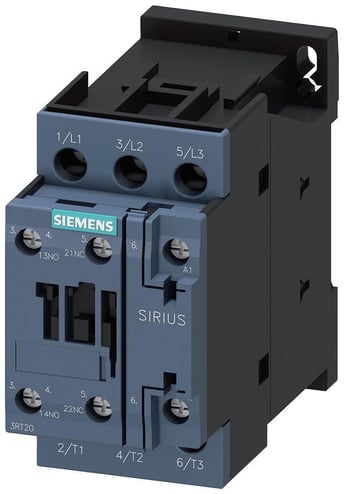

Siemens Siemens 3RT20271AN20


Description

Industry Description

Contactor, AC-3, 15KW/400V, 1NO+1NC, AC 220v 50/60HZ, 3-pole, sz s0 screw terminal

AD Description

Siemens SIRIUS 3RT20271AN20 3-Phase Non-Reversing Power Contactor, 220 VAC Coil, 32 A, 3NO Contact, 3 Poles

Vendor Description

The 3RT contactors are suitable for use in any climate. They are safe from touch to DIN VDE 0106 Part 100. The 3RT contactors are available screw, spring-type, or ring lug connections. An auxiliary contact is integrated in the basic unit of size S00 contactors. The basic units of sizes S0 to S3 only contain the main conducting paths. All the basic units can be extended with auxiliary switch blocks. Cabinet units with 2 NO + 2 NC (terminal designations acc. to EN 50 012) are available as of size S0; the auxiliary switch block is removable.

Specifications

Application
Contactors for switching motors
Connection
screw-type terminals
Country of Origin
DE
Length1
2.2000
Mounting
screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 +/-180? rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5? on vertical mounting surface
Operating_Temperature
60.0 -25.0 C
Phase
3
Size
S0
Special Features

  • 10 hp at 200/208 VAC, 220/230 VAC, 20 hp at 460/480 VAC, 25 hp at 575/600 VAC
  • 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil
  • Contactors in size S00, S0 and S2 can be used to configure star-delta (wye-delta) starters simply by plugging in function modules, these can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
  • Space is provided for them next to a snap-on auxiliary switch block
Sub_Brand
SIRIUS
Type
3RT2 contactor
