Appleton Appleton HUB350A


Description

Industry Description

Appleton, Aluminum Die Cast, Watertight Hubs, Insulated and Gasketed, Unique profile permits easy wrenching. Smooth, accurately tapped threads facilitate installation. Corrosion resistant. NEMA Types: 2,3,3R,4,4X,12, 13. Used to connect rigid metal conduit or IMC to a threqadless opening in an enclosure. UL Standard: 514B, UL Listed: E14814, E24264. E11853, CSA Standard: C22.2 No. 18.3. CSA Certified: 065178, NEMA: FB-1, Trade Size 3.5 IN

AD Description

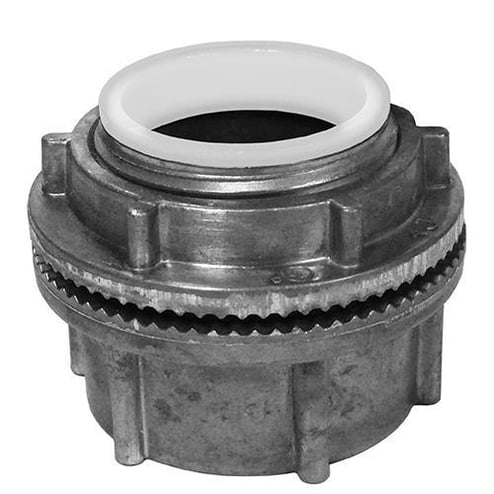

Appleton® HUB350A Gasketed Insulated Watertight Conduit Hub, 3-1/2 in, For Use With Rigid Metal Conduit/IMC, Die Cast Copper-Free Aluminum, Natural

Specifications

Application
Used to connect rigid metal conduit or IMC to a threqadless opening in an enclosure.
Color
Gray
Country of Origin
CN
Finish
Unfinished
Length1
13.5000
Material
Body and Nut: Cooper-free Aluminum Die Cast, O-Ring: BUNA-N, Insulator: polypropylene
Size
3.5
Special Features

  • Corrosion resistant
  • Die cast cooper-free aluminum body and nut, BUNA-N O-ring, polypropylene insulator
  • Insulated throat, rated up to 221 deg F, prevents wire abrasion
  • Integral O-ring provides watertight seal
  • Rugged metallic construction ensures mechanical protection
  • Smooth, accurately tapped threads facilitate installation
  • Unique profile permits easy wrenching
Standard
UL Standard: 514B, UL Listed: E14814, E24264. E11853, CSA Standard: C22.2 No. 18.3. CSA Certified: 065178, NEMA: FB-1
Temperature_Rating
105
Type
Aluminum Die Cast, Watertight Hubs, Insulated and Gasketed
